Heavy-Lift Dominance

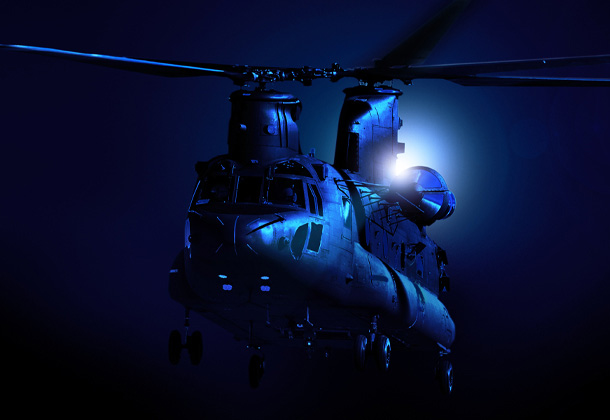

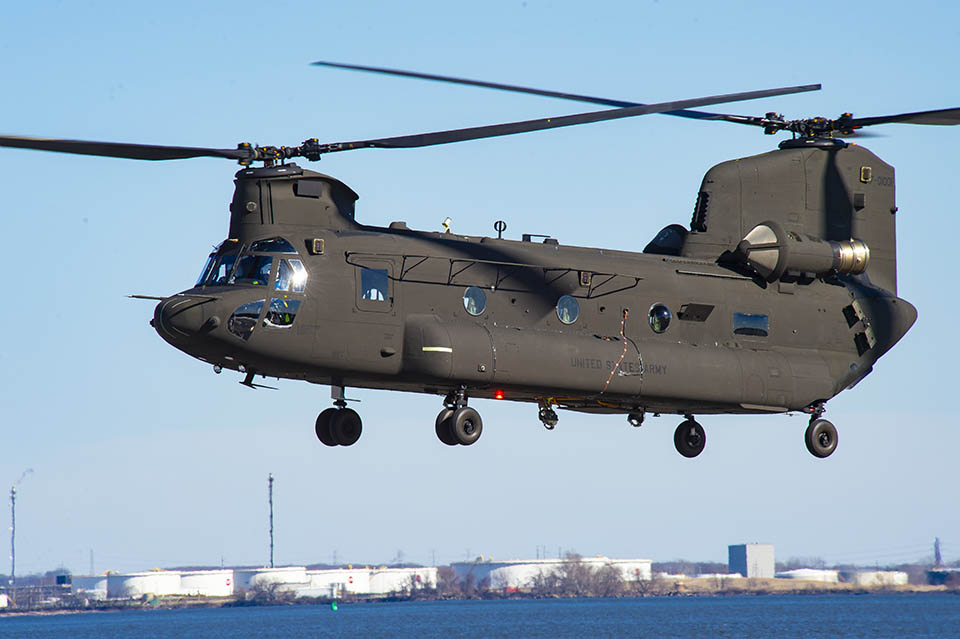

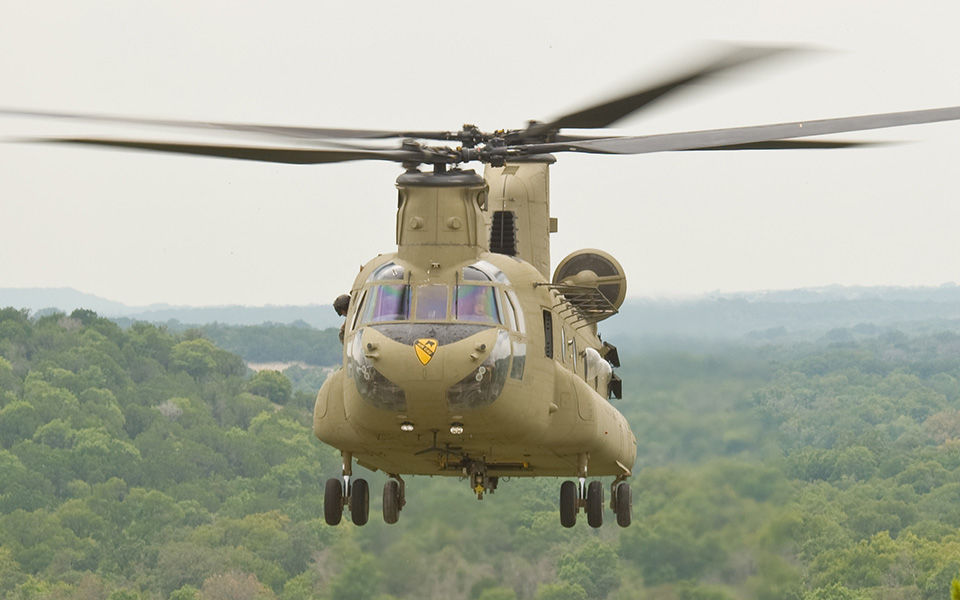

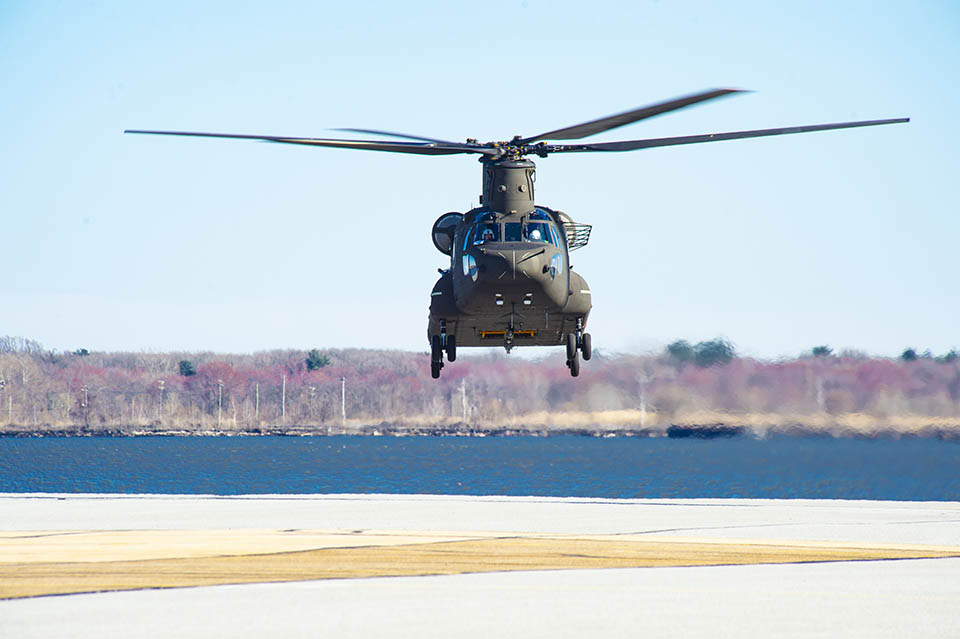

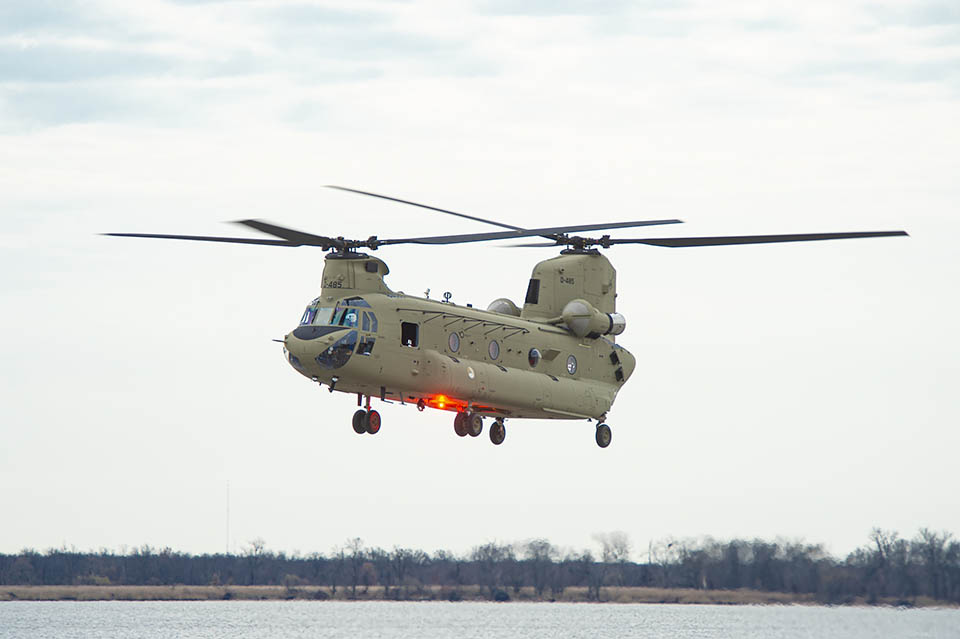

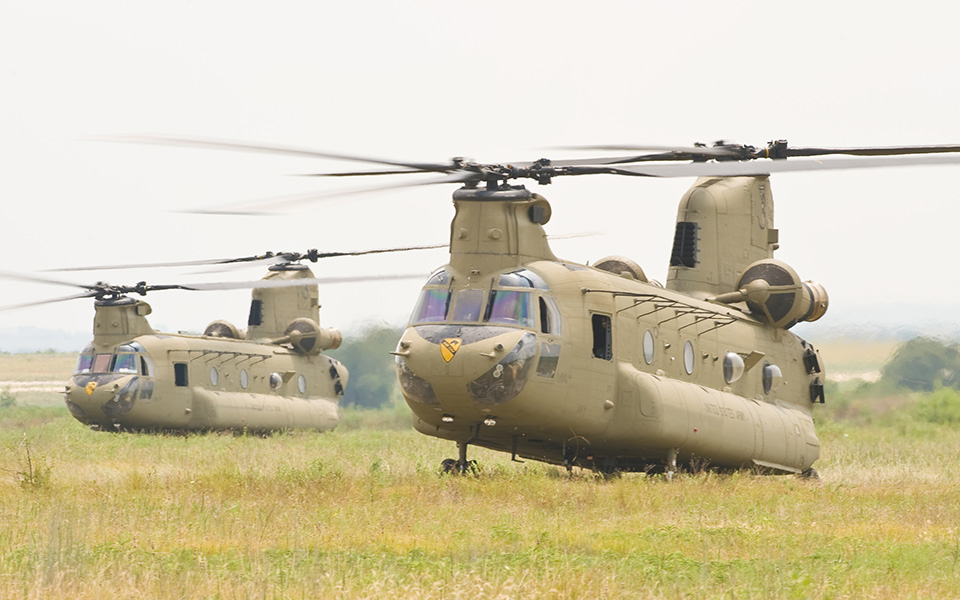

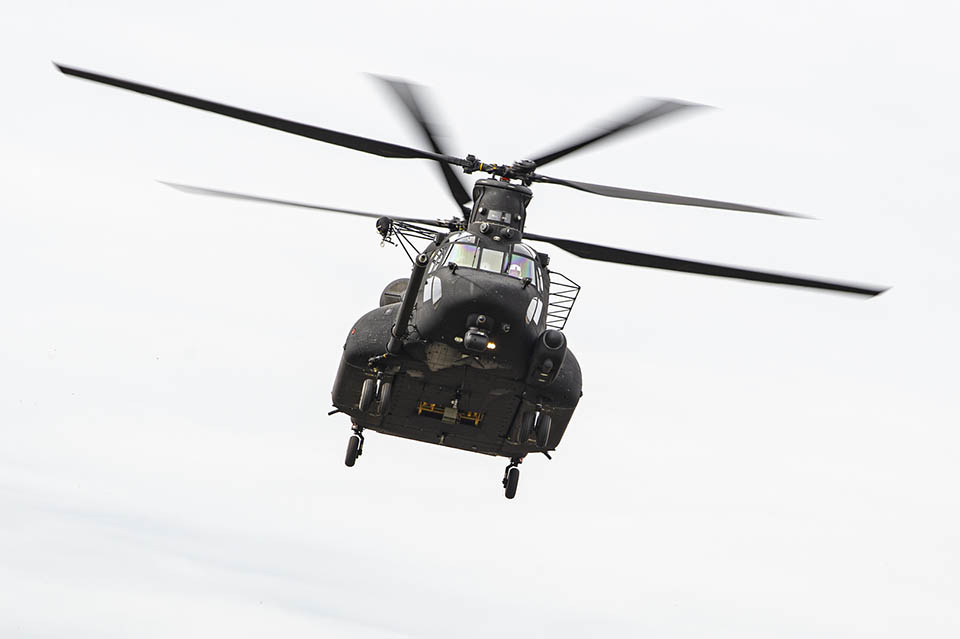

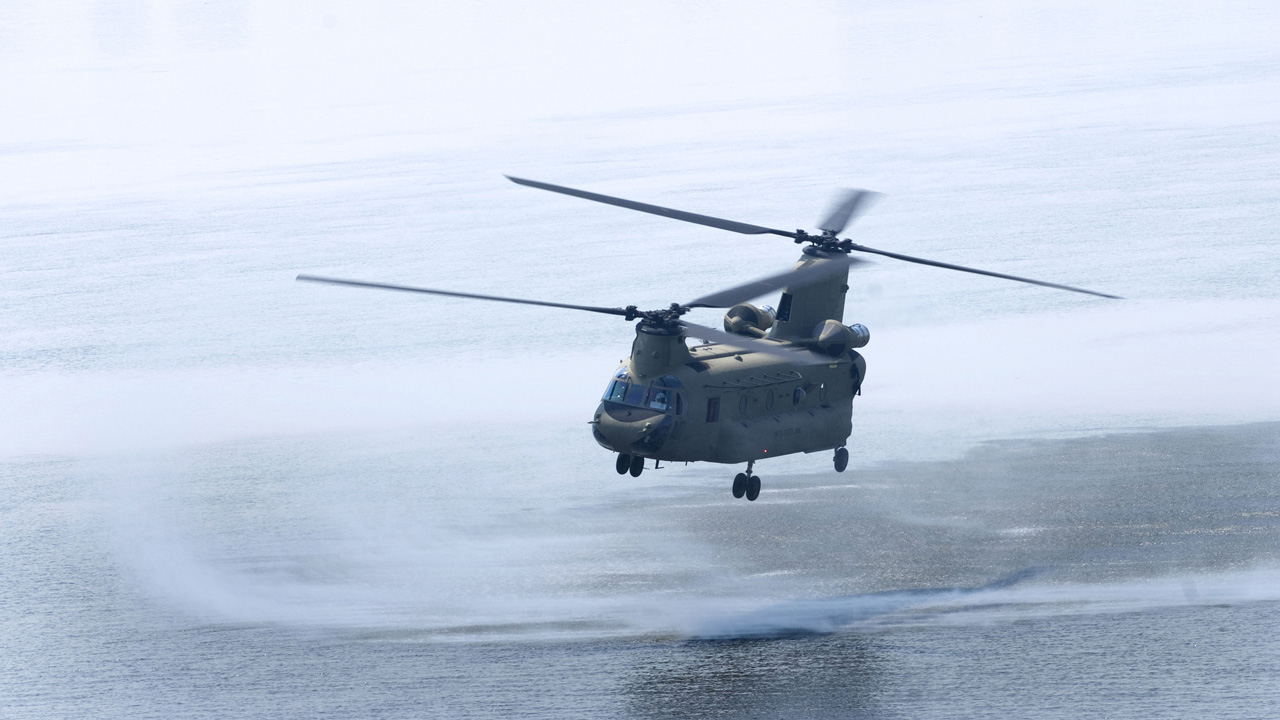

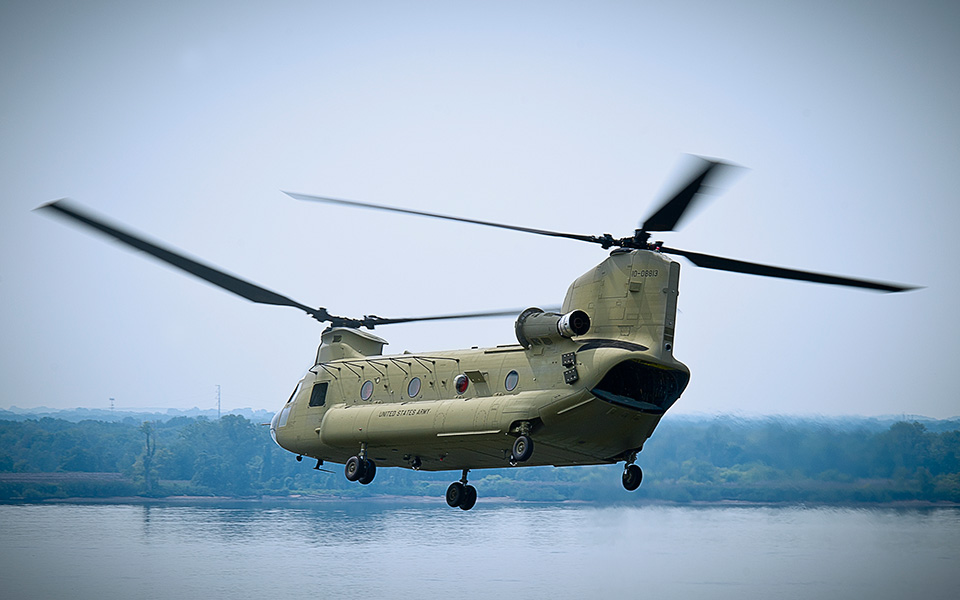

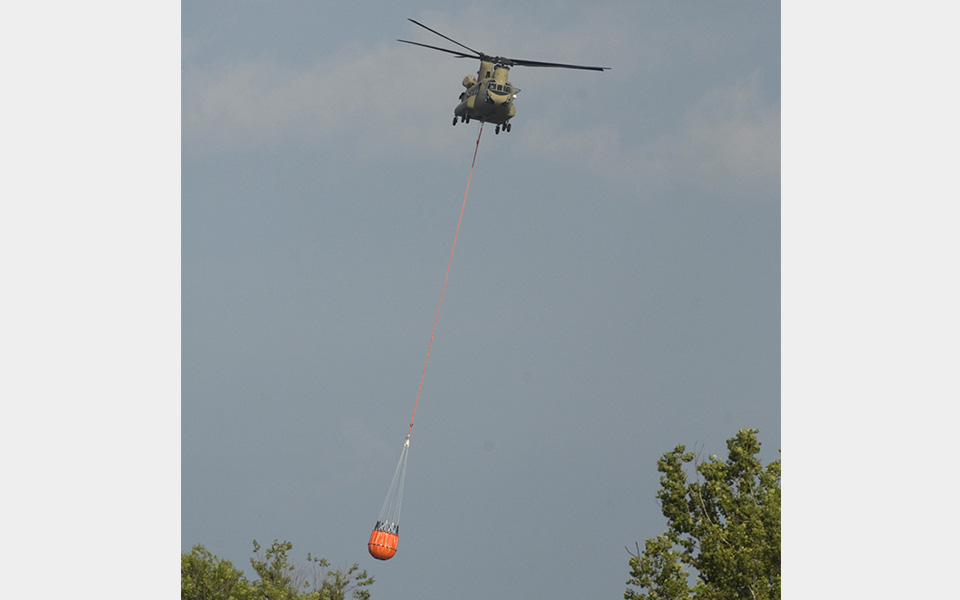

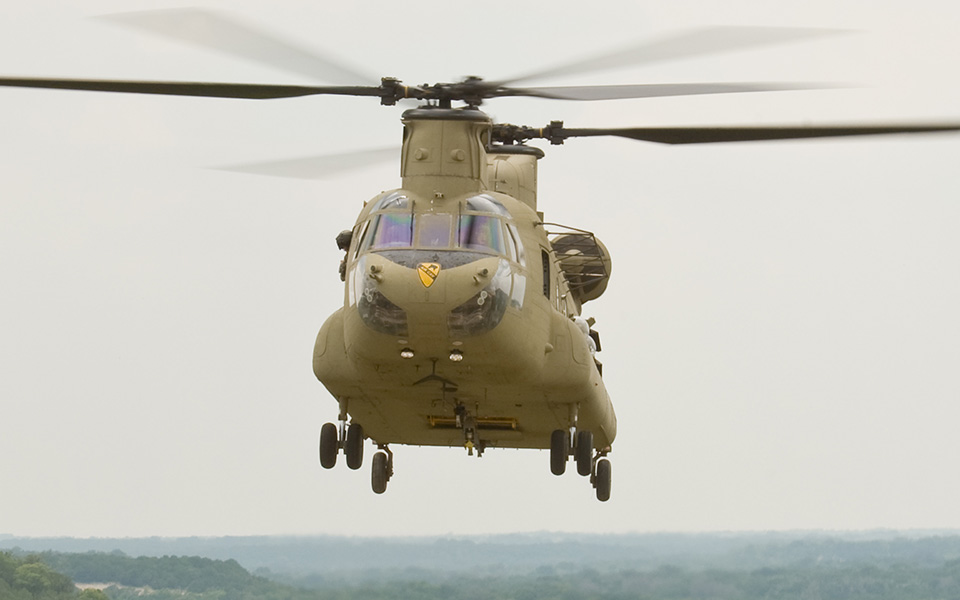

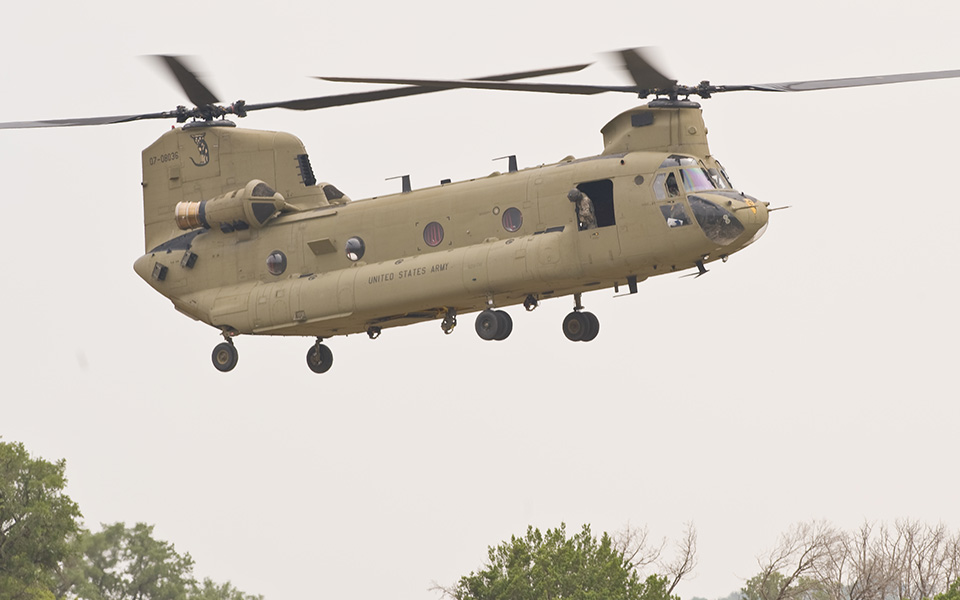

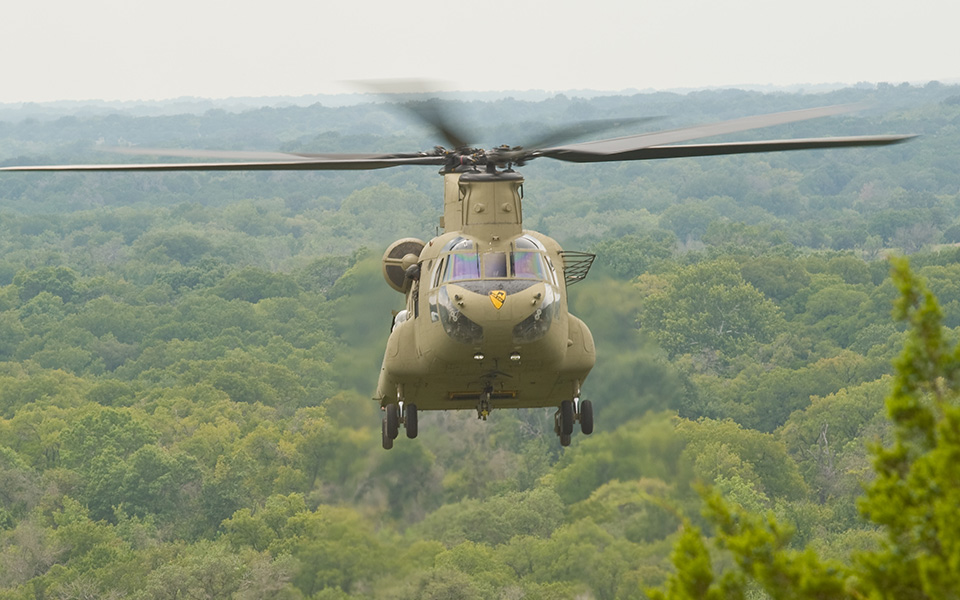

The H-47 Chinook is the heavy-lift helicopter of choice for the U.S. Army and 20 international operators. It is an advanced, multi-mission, tandem rotor helicopter, proven in cargo and troop transport, search and rescue, casualty evacuation, special operations, humanitarian and disaster relief, and more.

The tandem rotor design provides for increased stability and control, maximum agility, ease of loading and unloading and superior performance in wind. The Chinook can operate where others cannot. Rear ramp access on any terrain is not restricted by tail rotor clearance, allowing tandems to operate on unprepared, mountainous positions and execute the unique pinnacle landing capability. The design also allows the Chinook to fly at up to 20,000 feet, higher than other helicopters in its class.

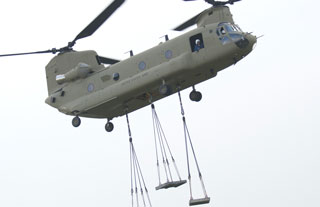

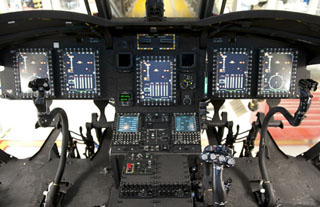

It contains a fully integrated, digital cockpit management system – the Common Avionics Architecture System (CAAS) Cockpit paired with a Digital Automatic Flight Control System (DAFCS) – as well as advanced cargo-handling capabilities that complement the aircraft's mission performance and improve situational awareness.

Covering a vast amount of distance in a quick amount of time, the H-47 Chinook can be equipped with extended range fuel tanks and fitted for air-to-air refueling capability, meaning the Chinook can fly farther than ever before.

Modernized and Ready Now

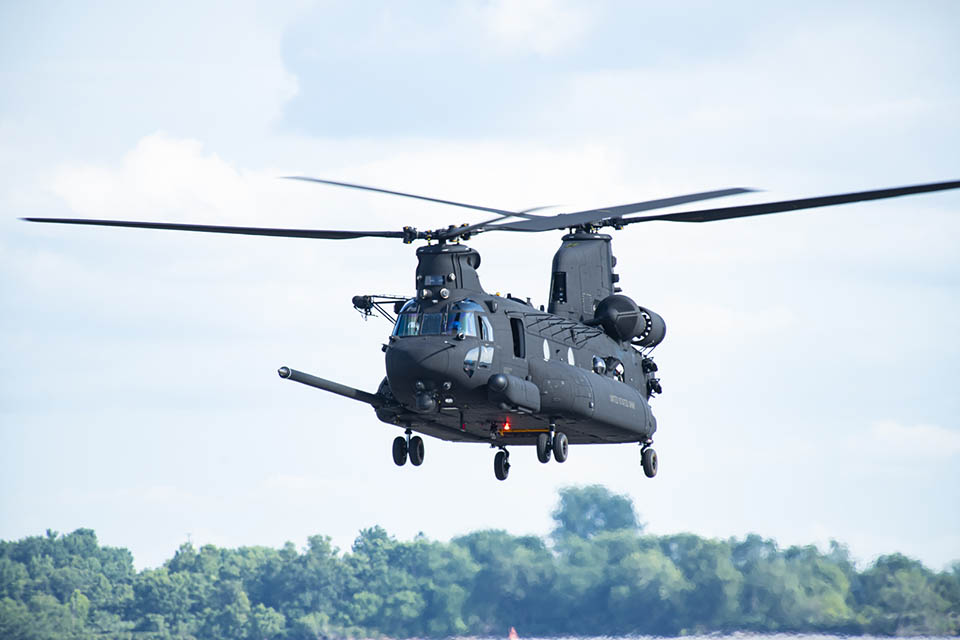

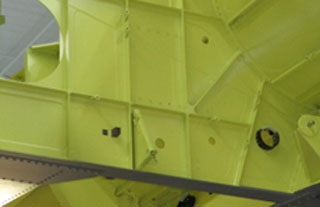

To safely and effectively accomplish critical missions now and in the future, soldiers must have the most modernized heavy-lift solution. The H-47 Chinook Block II, the most advanced and capable heavy-lift aircraft in its class, is the only way to rapidly meet the warfighter’s ever-evolving needs. Boeing’s H-47 Chinook Block II is powered by cutting-edge technologies - redesigned fuel tanks, a strengthened fuselage, and an improved drivetrain, all of which enable soldiers to meet today’s heavy-lift mission requirements.

A Long-Term Solution

The Chinook Block II program positions the Army and international allies for long-term success. Not only is the Block II aircraft capable of meeting today’s heavy-lift requirements, it provides structural and design improvements that allow additional future upgrades to meet long-term heavy-lift needs.

Key investments in next generation technologies such as avionics open systems architecture and mission systems integration will enable decisive overmatch -- a critical advantage for the warfighter to succeed in Joint All-Domain Operations. Structural enhancements and vehicle power upgrades will keep the Chinook prepared to fight and win in all missions including large scale combat operations for decades to come.

Supporting the Industrial Base

The H-47 Chinook program supports more than 20,000 jobs and 360 suppliers in 40 states. Chinook Block II production will ensure a healthy manufacturing base for years to come. The program supports a diverse group of suppliers, all of which Provide support to the production line and our Soldiers in the field

Boeing Support and Maintenance

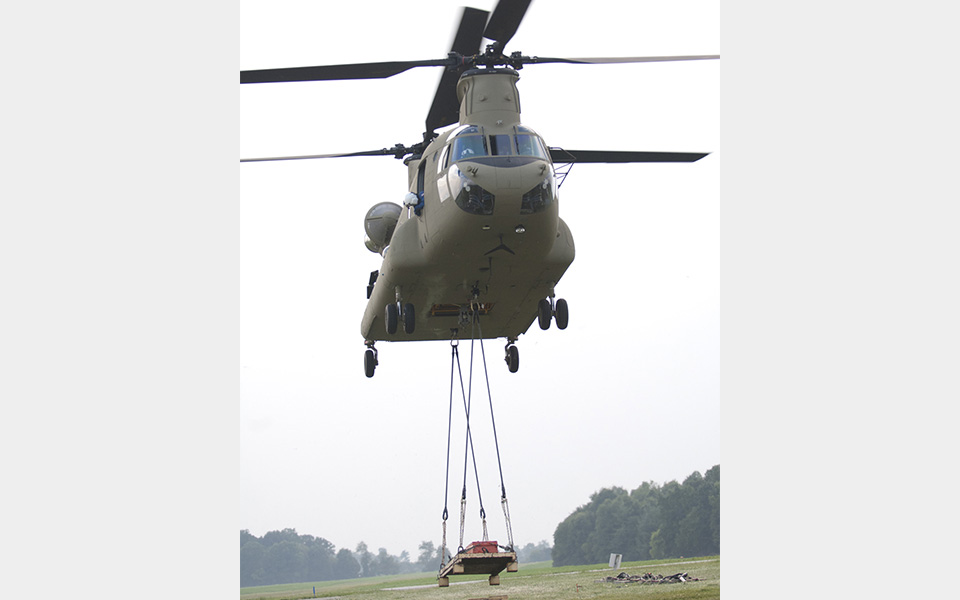

Optimizing readiness of the Chinook fleet around the globe is one of Boeing’s many missions. From performance-based logistics contracting and integrated fleet support to vertical lift maintenance, modifications and repairs, Boeing provides a broad spectrum of innovative products and services which directly support and enhance capabilities while reducing total cost of ownership. These services range from transactional spares to complete lifecycle support solutions that are uniquely tailored to the requirements of each H-47 customer.

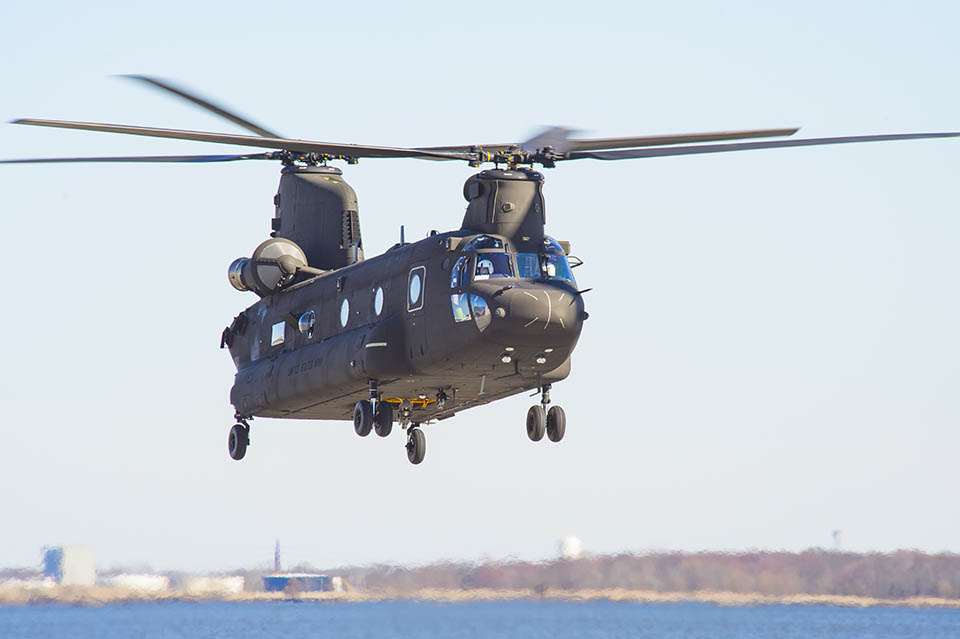

CH-47F Chinook Block II Specifications

DIMENSIONS
Rotor Diameter 18.29 meters 60 feet
Length:
Rotors operating 30.14 meters 98 feet, 10.7 inches
Rotors folded 15.47 meters 50 feet, 9 inches
Fuselage 15.88 meters 51 feet, 2 inches
Height (overall) 5.68 meters 18 feet, 7.8 inches
Fuselage Width 3.78 meters 12 feet, 5 inches
Static forward 2.29 meters 7 feet, 6 inches
Idling forward 3.33 meters 10 feet, 11 inches
Fuel Capacity 4088 liters 1080 gallons
PROPULSION
2 Honeywell T55-GA-714A engines
4,777 shp (3,529 kW) each
PERFORMANCE (Standard day, sea level)
Maximum Speed 302 km/h 170 KTAS
Cruise Speed 291 km/h 157 KTAS
Mission Radius 306 km 165 nm
Service Ceiling 6096 meters 20,000 feet
Max Gross Weight 24,494 kg 54,000 lbs.
Useful Load 12,565 kg 27,700 lbs.

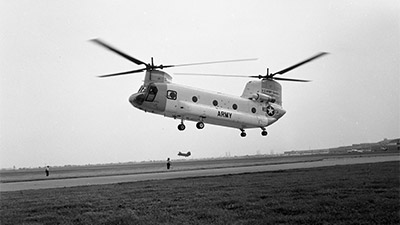

Milestones

H-47 Chinook Customers

The Chinook is a multi-mission aircraft in use by U.S. Army, U.S. Army Reserve, National Guard and 20 countries, including Canada, the United Kingdom, Netherlands, Japan, Italy, Greece, Spain, South Korea, Australia, Türkiye, and the United Arab Emirates.

  • Australia

    Australia

  • Canada

    Canada

  • Greece

    Greece

  • Italy

    Italy

  • Japan

    Japan

  • Netherlands

    Netherlands

  • South Korea

    South Korea

  • Spain

    Spain

  • Türkiye

  • United Arab Emirates

    United Arab Emirates

  • United Kingdom

    United Kingdom

  • United States

    United States
