Technology

Digitally Designed

A testament to the power of digital design, the 777 integrates onboard systems, advanced materials, aerodynamics and the world's most powerful jet engines to produce the most reliable twin aisle airplane flying.

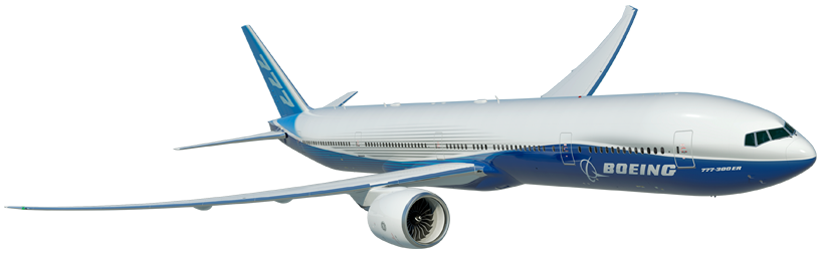

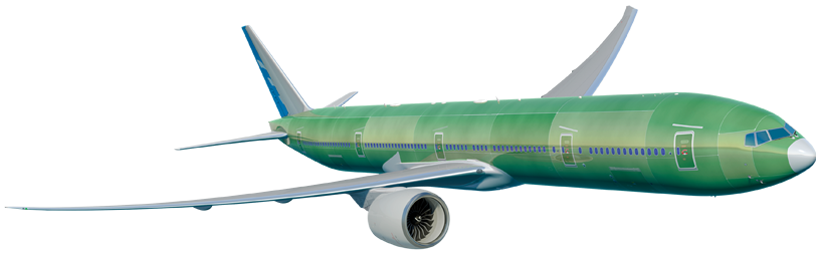

Image of 777 plane

Aerodynamics

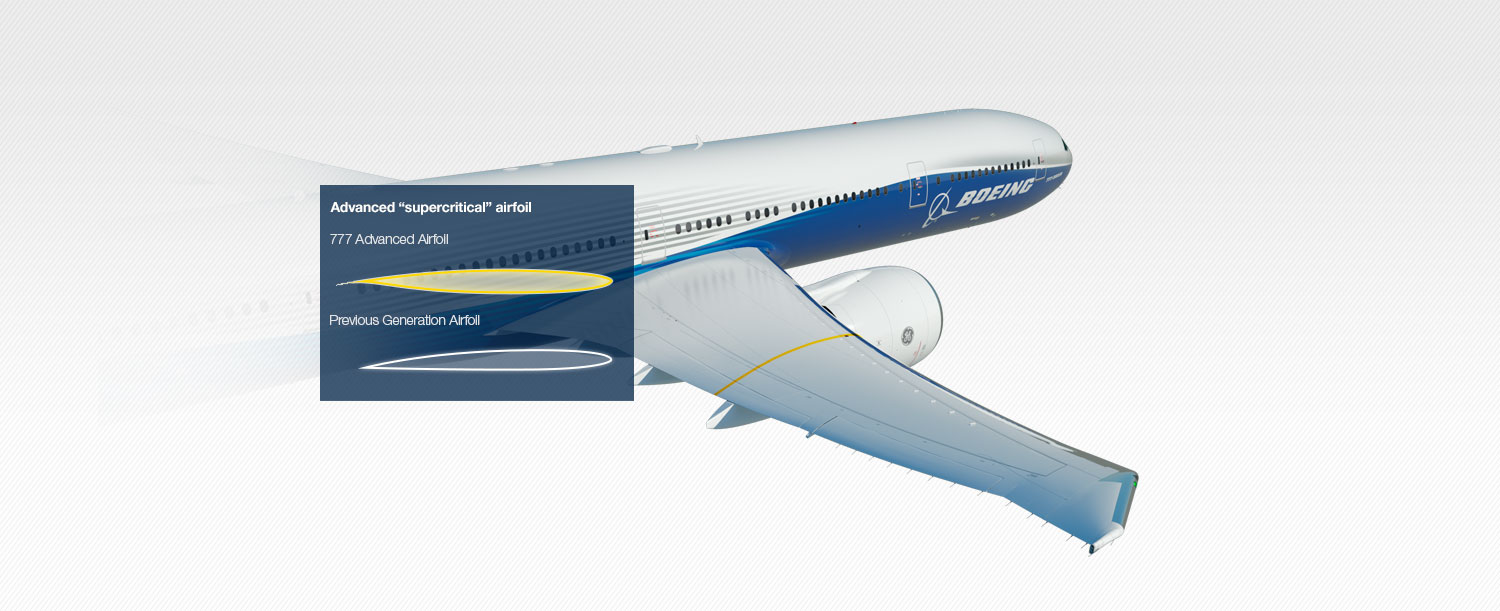

The advanced wing design of the 777 features a long span with increased thickness to dramatically improve airplane performance and reduce operating costs. Optimized for the greatest lift with the least drag, the advanced wing shape allows the 777 to climb quicker, cruise faster and higher, and consume less fuel during cruise. Flying at Mach 0.84—virtually the same speed as the 787 and 747-8—the 777 gives airlines the benefit of efficiency and speed.

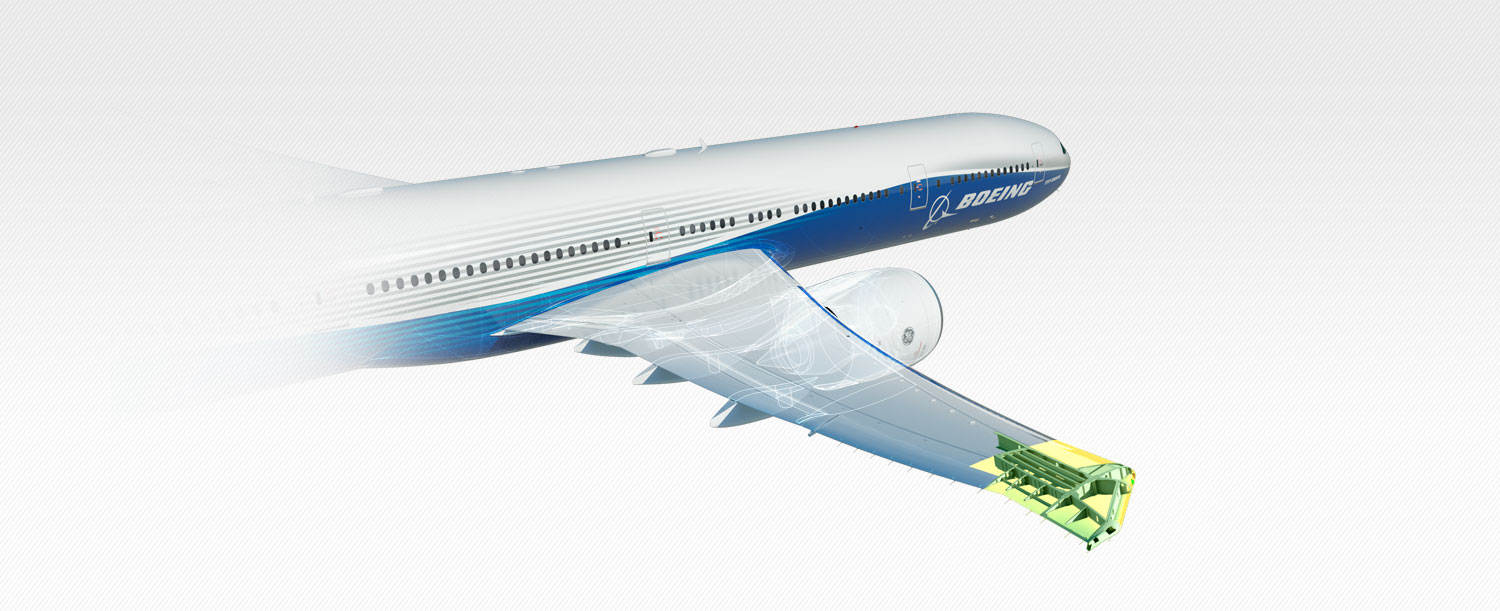

Raked wingtips were added to improve overall aerodynamic efficiency, extending each wing by 2 meters (6.5 feet). The raked wingtips help reduce the required takeoff field length, increase climb performance, and reduce fuel burn.


High aspect ratio wing
Great aerodynamic efficiency

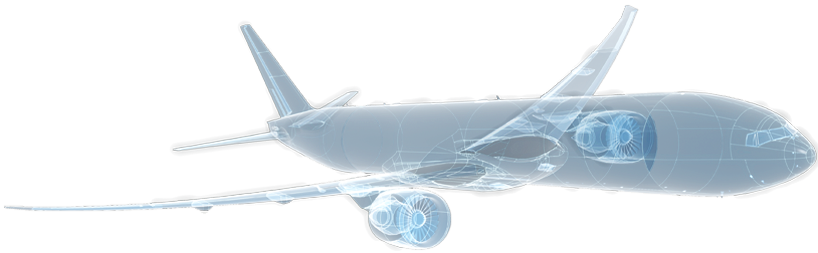

Plane Diagram

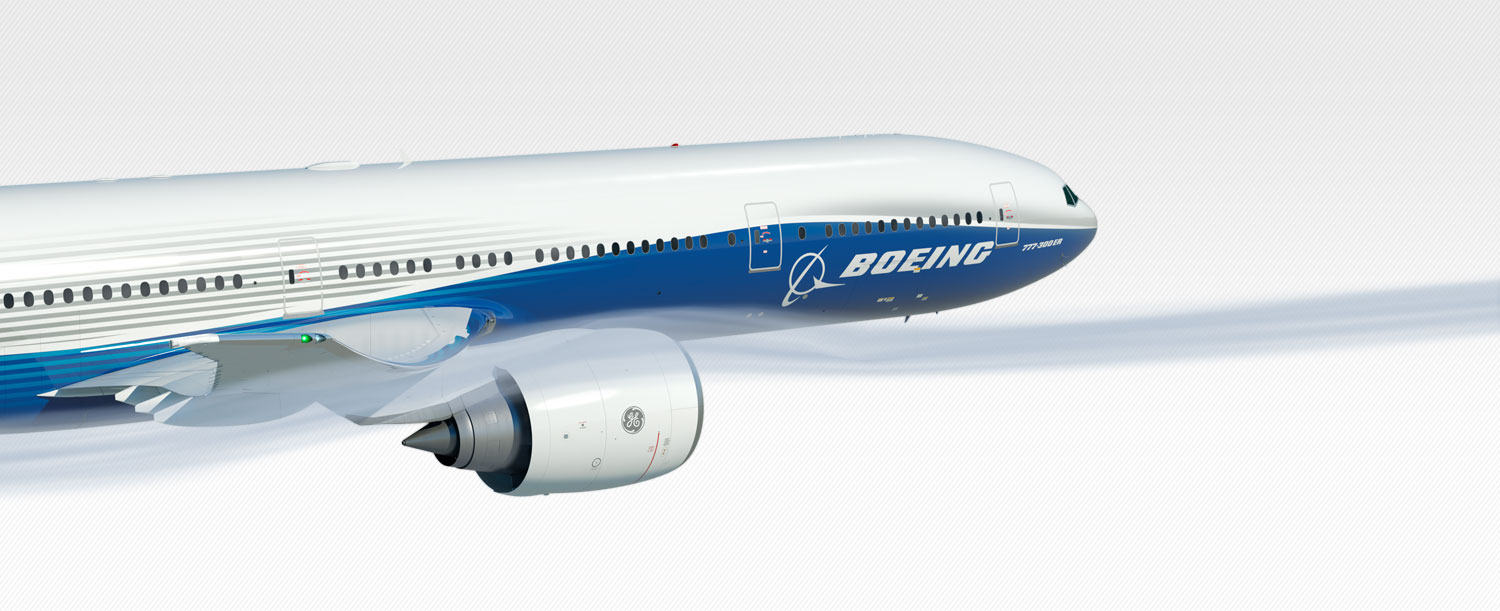

Engine

The GE90-115B powers the 777-300ER, 777-200LR Worldliner, and 777 Freighter. The most powerful jet engine ever built, the GE90-115B owns the record for highest thrust achieved by a commercial jet engine. In addition to having outstanding performance and reliability, the GE90-115B has exceeded expectations for efficiency.

Image of a GE Engine

Light & Durable

Strategic use of composites and advanced alloys

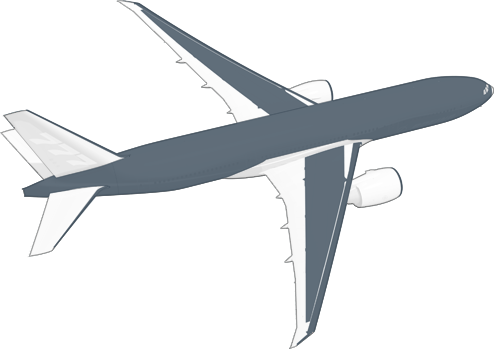

Advanced alloys saved 1,450 kilograms (3,200 pounds) of structural weight on the 777. Selected for mechanical properties and for their light weight, the advanced alloys contribute to the remarkable dispatch reliability and maintenance economics of the 777.

Composite materials reduced 777 structural weight by 1,180 kilograms (2,600 pounds). Resistant to fatigue and corrosion, composite materials reduce maintenance time, saving airlines money and increasing airplane availability.

  • Strategic use of composites and advanced alloys
  • Saves 2,600 kilograms (5,800 pounds) of structural weight
  • Lower costs and easier to maintain
  • Increased airplane reliability

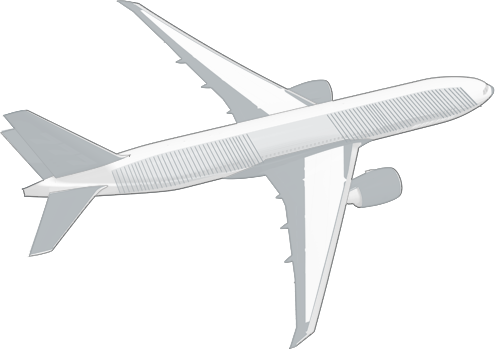

777 Plane Composite

Flight Deck

Digital technology aboard the award-winning 777 flight deck saves time and money

Thoroughly integrated displays, controls, and automation work together to enhance the pilot‐airplane interface while making flight deck procedures efficient.

Large flat‐panel displays present flight information in a readily accessible form, allowing pilots to quickly analyze flight parameters for safety, schedule, passenger comfort, and economics. Electronic checklists, which airlines can customize with airline‐specific information and procedures, teams the flight crew and airplane systems together, integrates the checklist with the flight deck systems, automatically checks off items, and serves as a reminder of required operations, when combined this saves valuable minutes which translates into dollars. Adding the electronic flight bag (EFB) significantly reduces the need for paper on the flight deck and uses airplane‐to‐ground connectivity to deliver more critical information to the appropriate departments. Documents, including charts, flight manuals, aircraft and pilot logbooks, and electronic airport qualification information is downloaded electronically. The electronic flight bag enhances flight operations and reduces recurring expenses. EFB class 3 provisions are provided as part of the basic airplane. The flight deck and flight management system provide ample provision for future enhancements, such as improvements to air traffic management systems.

The 777 flight deck won the Industrial Design Excellence Award from the Industrial Designers Society of America.

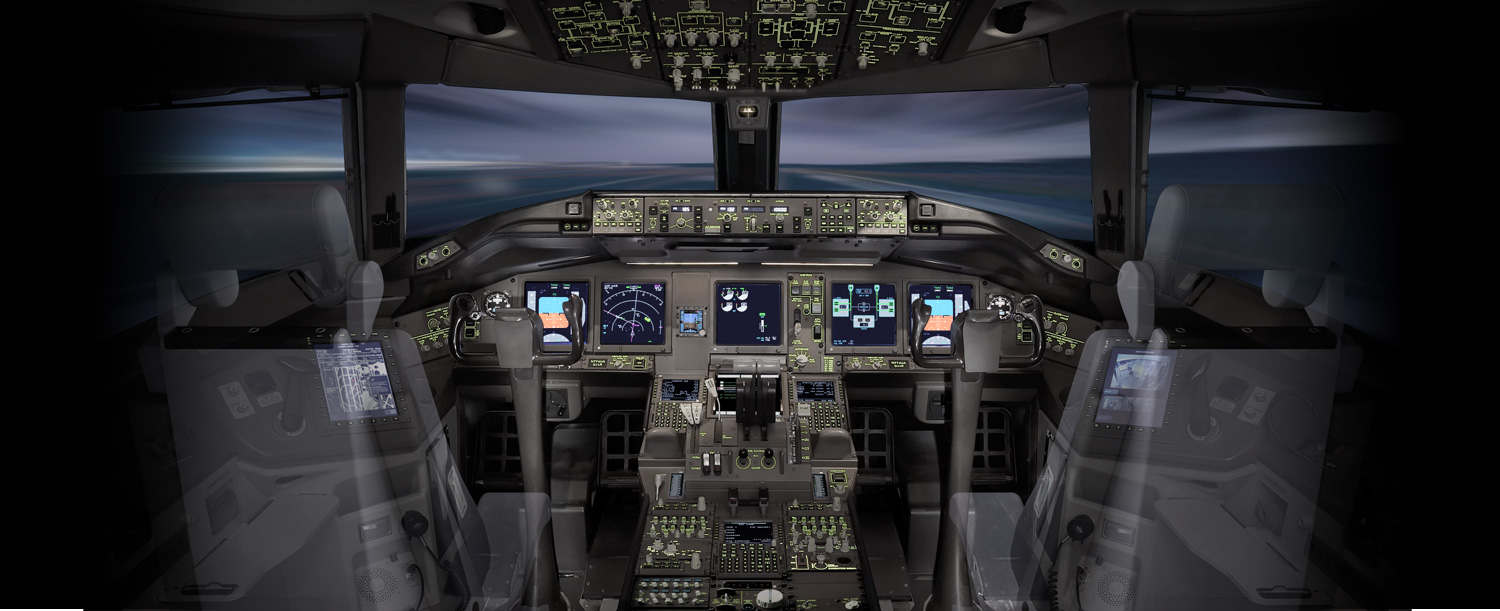

777 flight deck

Product Improvements

The 777 flight deck won the Industrial Design Excellence Award from the Industrial Designers Society of America.

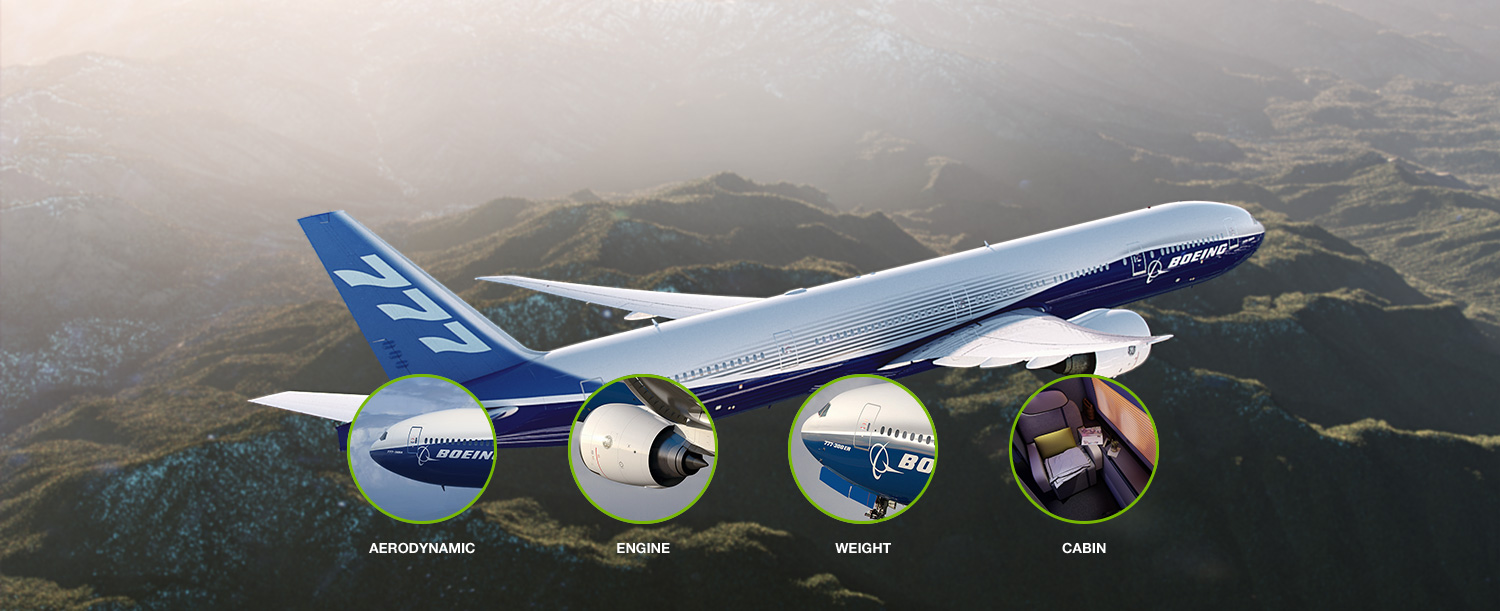

Image of 777 and its features

Continuous Innovation

  • Three newer models
  • More range, more payload
  • Better aerodynamic efficiency
  • Lower fuel consumption
  • Lower maintenance costs
  • Higher dispatch reliability
  • Fuel efficiency enhancements
  • Cabin enhancements

Interior

The 777 cabin is designed to make every passenger aspire to be a frequent passenger. Comfort at every seat and convenience throughout the cabin make flying productive for business travelers, restful for leisure travelers, and enjoyable for all on board.

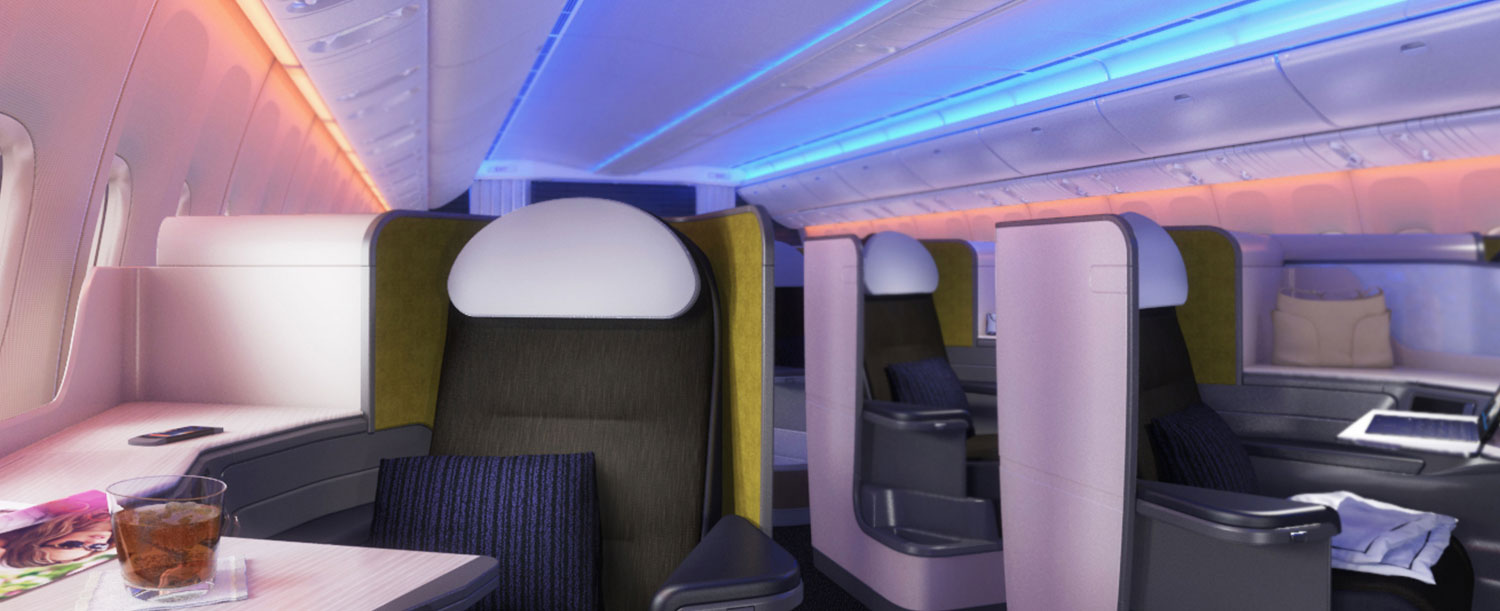

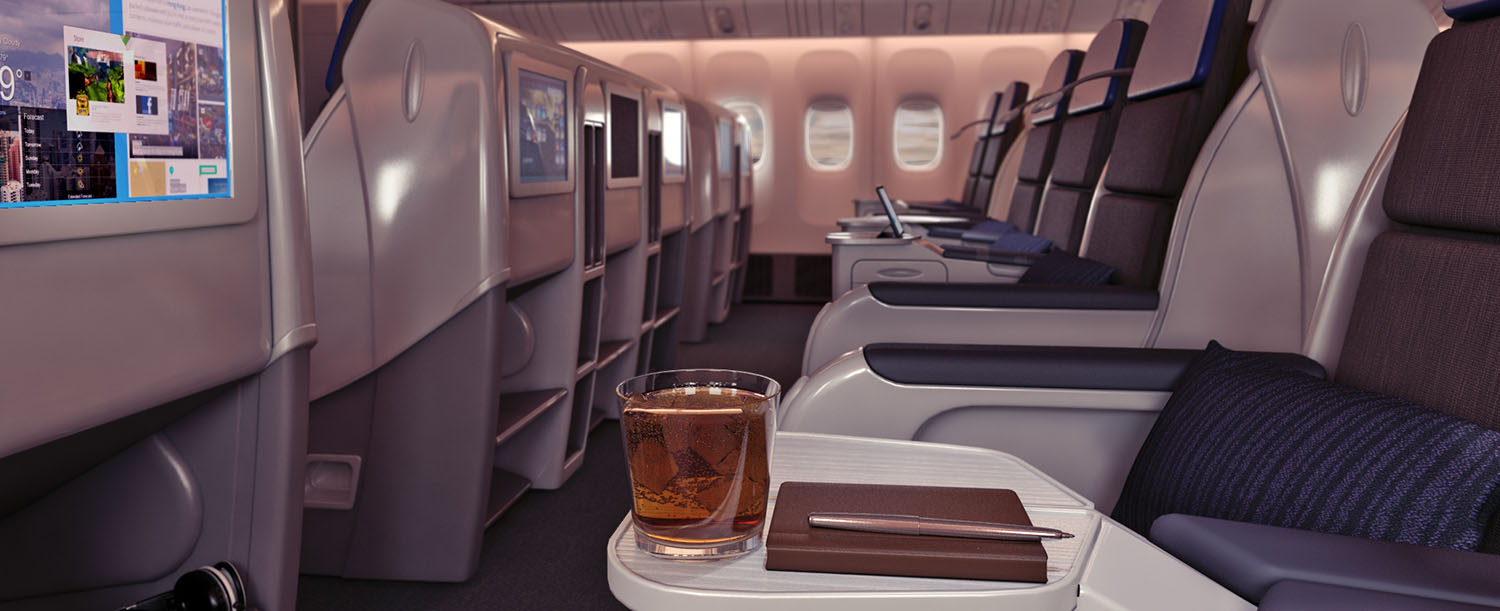

777 interior business/first class seat

Elegant Features

Elegant architecture

A wide cabin and open sight lines provide the ideal setting for the airline’s signature service.

High ceilings and stowage bins that virtually disappear during flight give passengers a broad vista of the spacious cabin. Passengers in window seats enjoy generous room for head and shoulders thanks to the nearly vertical sidewalls. The gentle contour of the walls, ceiling, and integrated stowage bins allows tall passengers to enter the aisle and return to their seat without stooping.

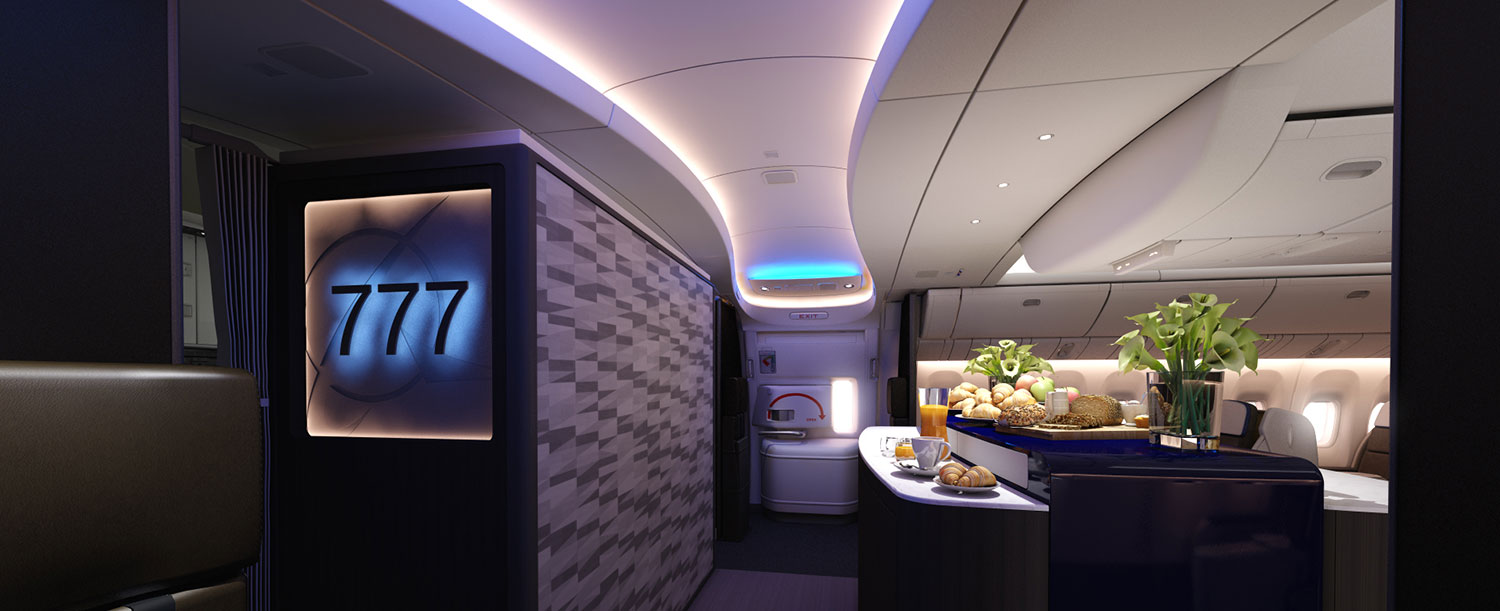

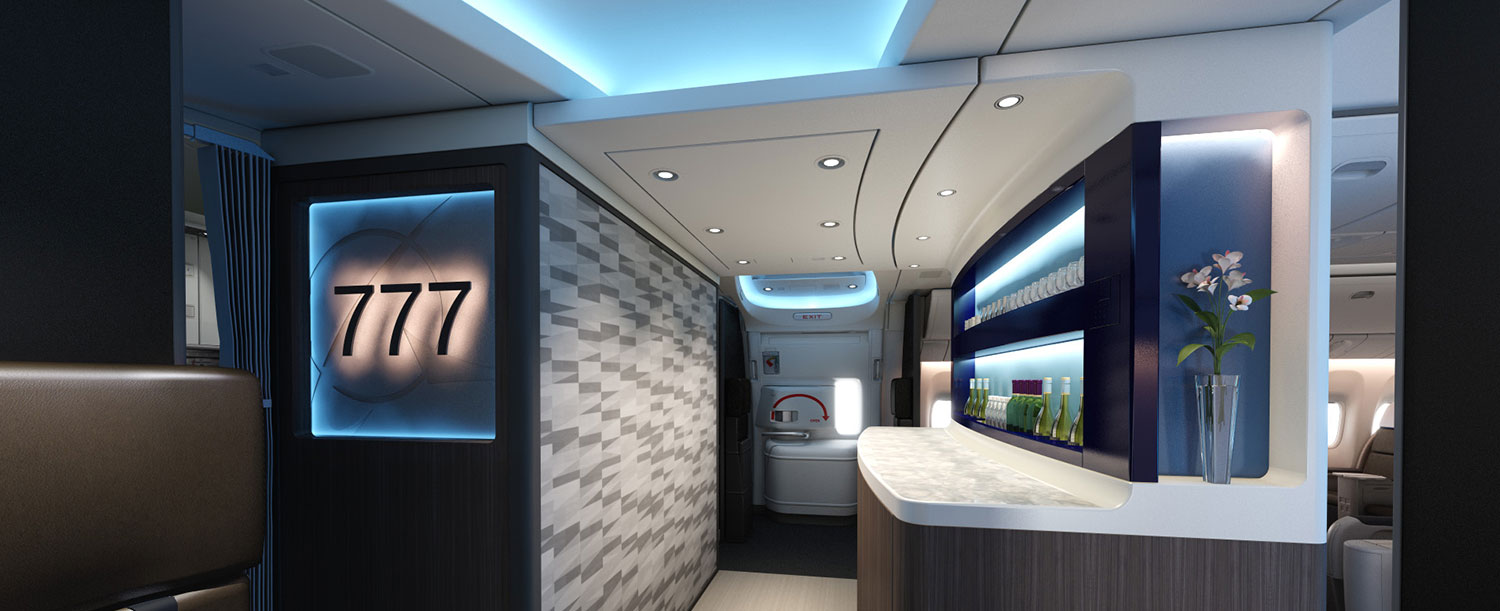

Image of 777 welcoming entry

Award Winning 777 Interior

The 777 is the consistent favorite of frequent fliers – defining comfort in air travel. Readers of the American Express' Executive Travel magazine, for six years in a row, have voted the 777 the best airplane for air travel. Business executives who travel frequently, averaging more than 38 airplane trips a year select the Leading Edge award winners. The 777 also won Business Traveler magazine's 'Best Aircraft Type' recognition three years in a row. These awards are testimony to the continued popularity of the Boeing 777.

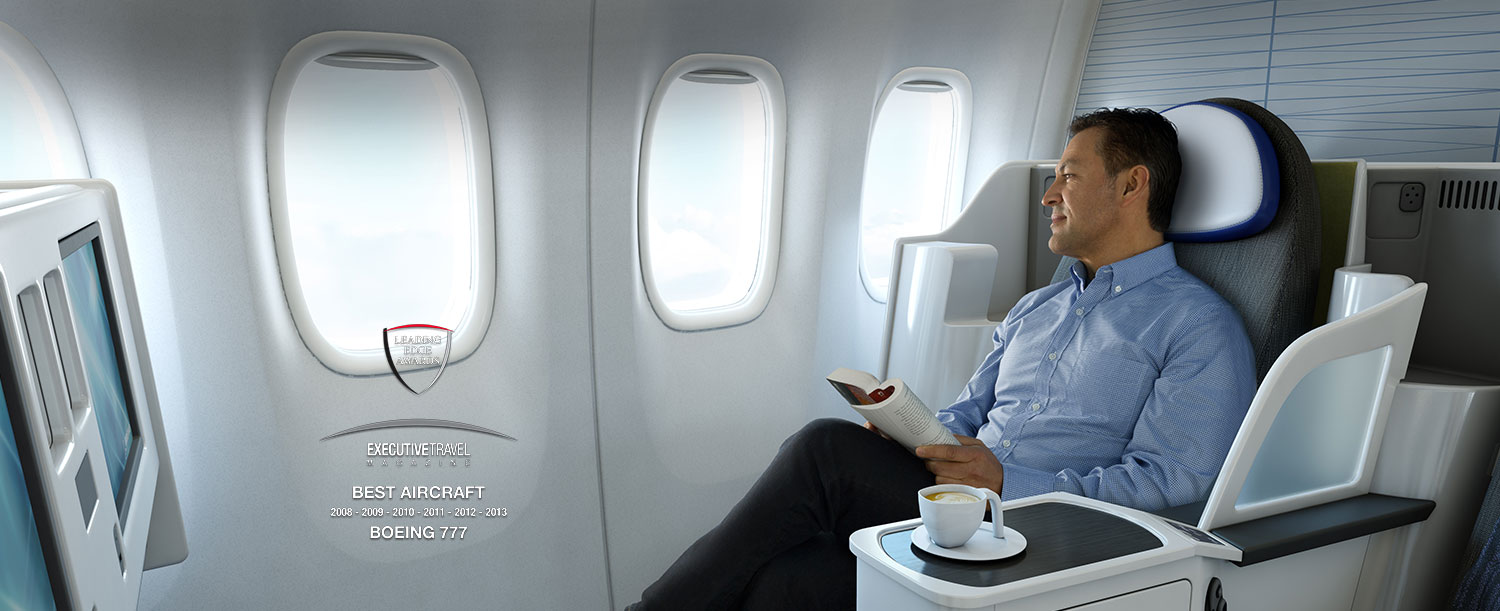

Image of man sitting in 777 first class

Spacious Bins

Generous space for personal belongings is within easy reach of every seat. Bins glide downward as they open, allowing passengers to load and unload popular roll-aboard luggage without blocking the aisles. Boarding and deboarding is quicker and smoother. Passengers relax during the flight, secure in the knowledge that their personal belongings are stowed nearby.

At least one roll-aboard per passenger

There's no need to scramble for stowage space when passengers are confident that they will find room for carry-on luggage close at hand.

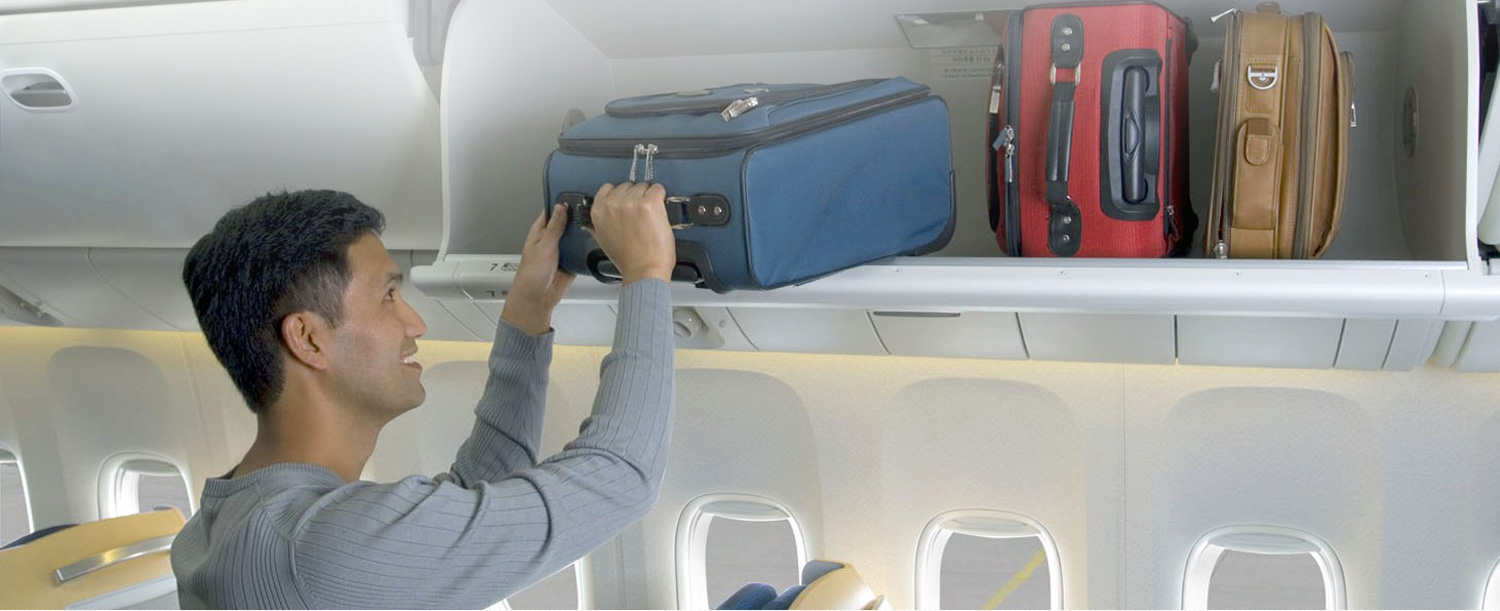

Image of man pulling luggage from 777 bins

Dynamic LED Lighting

Lighting that sets the mood

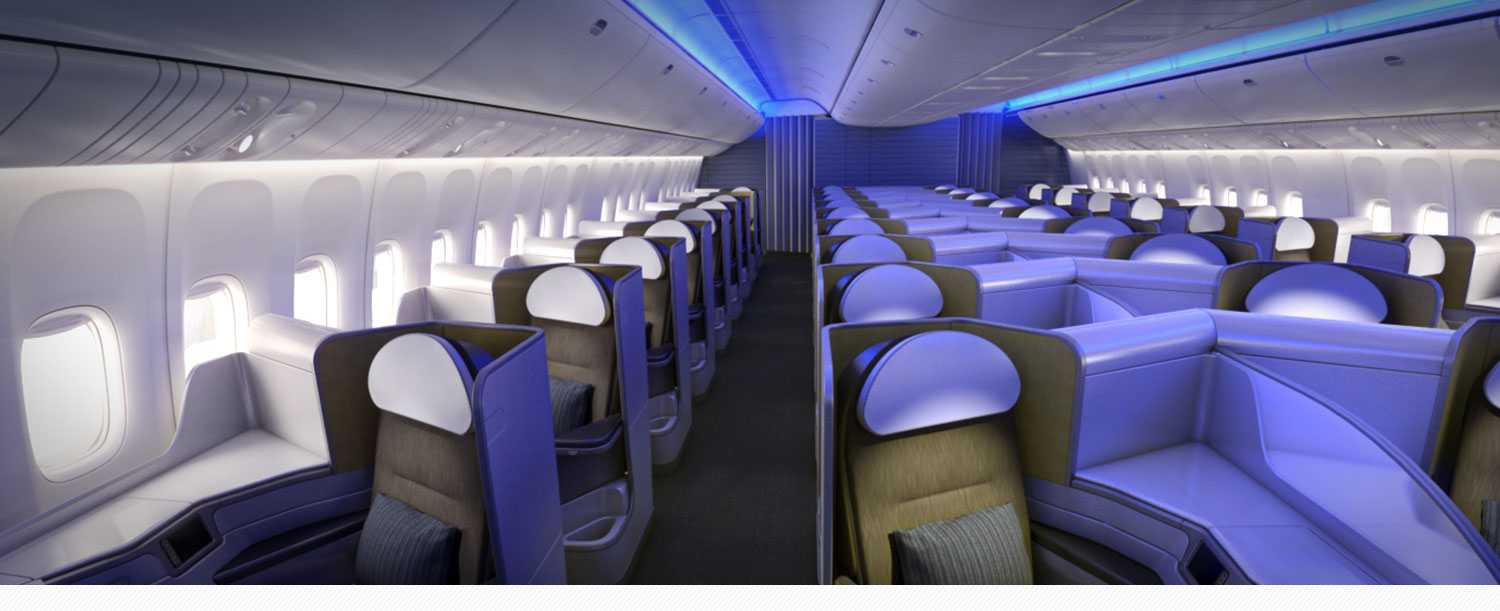

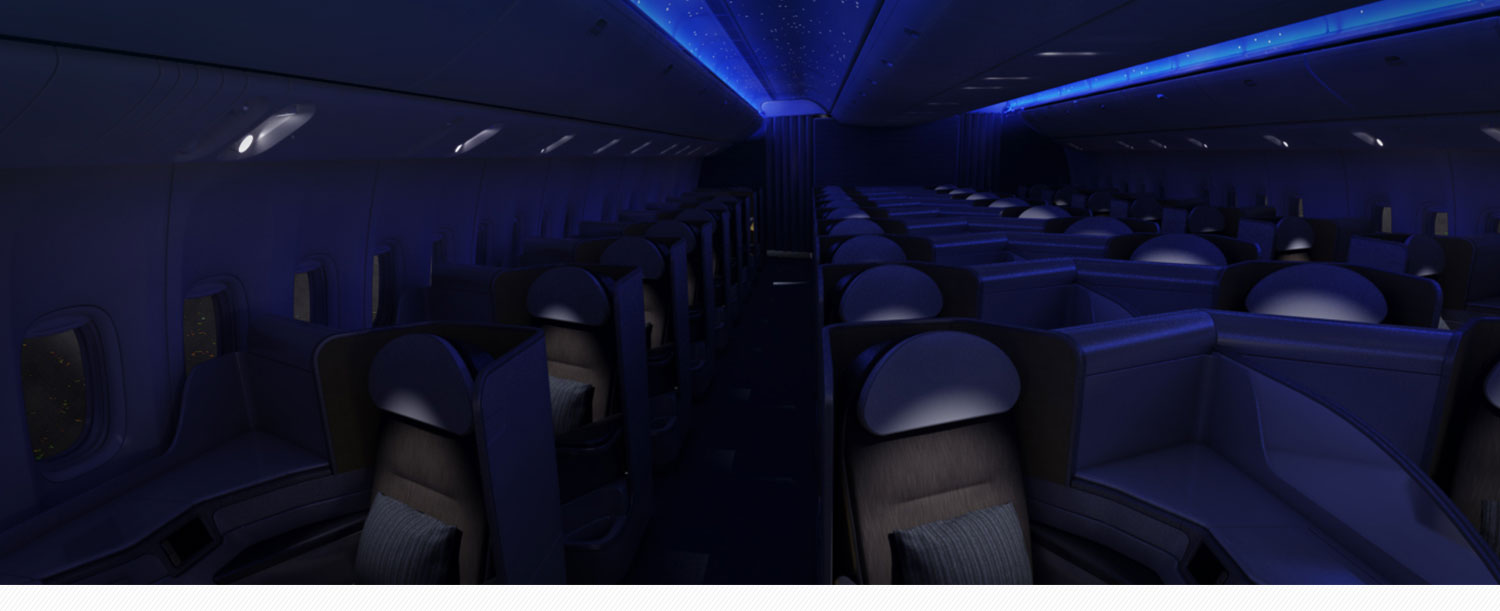

The latest 777 models can be equipped with an innovative LED lighting system that can vary the intensity and hue of illumination to harmonize with the level of activity in the cabin.  The dynamic LED colored lighting creates a unique ambiance during various phases of flight, thoughtfully balanced for leisure, work,  or rest.  Because LED lights have no filament, they last 10 to 20 times longer than then traditional incandescent lights.



Image of boarding LED lighting

Flexibility and Productivity

Precise match for market requirements

The 777 has a wider cabin than any competing airplane—current or planned. Airlines gain the utmost flexibility to match cabin configuration to their business strategy and market requirements. Ideal for flagship service, the 777 is also the premier choice for dense markets, where extra seats lead directly to extra revenue.

Greater revenue potential in every cabin

More than an aesthetic triumph, the wide 777 cabin is designed to increase revenue potential and improve profit performance. Room for an additional seat in every row gives airlines the opportunity to boost revenue passenger capacity while maintaining a high level of passenger comfort.

Premium accommodations

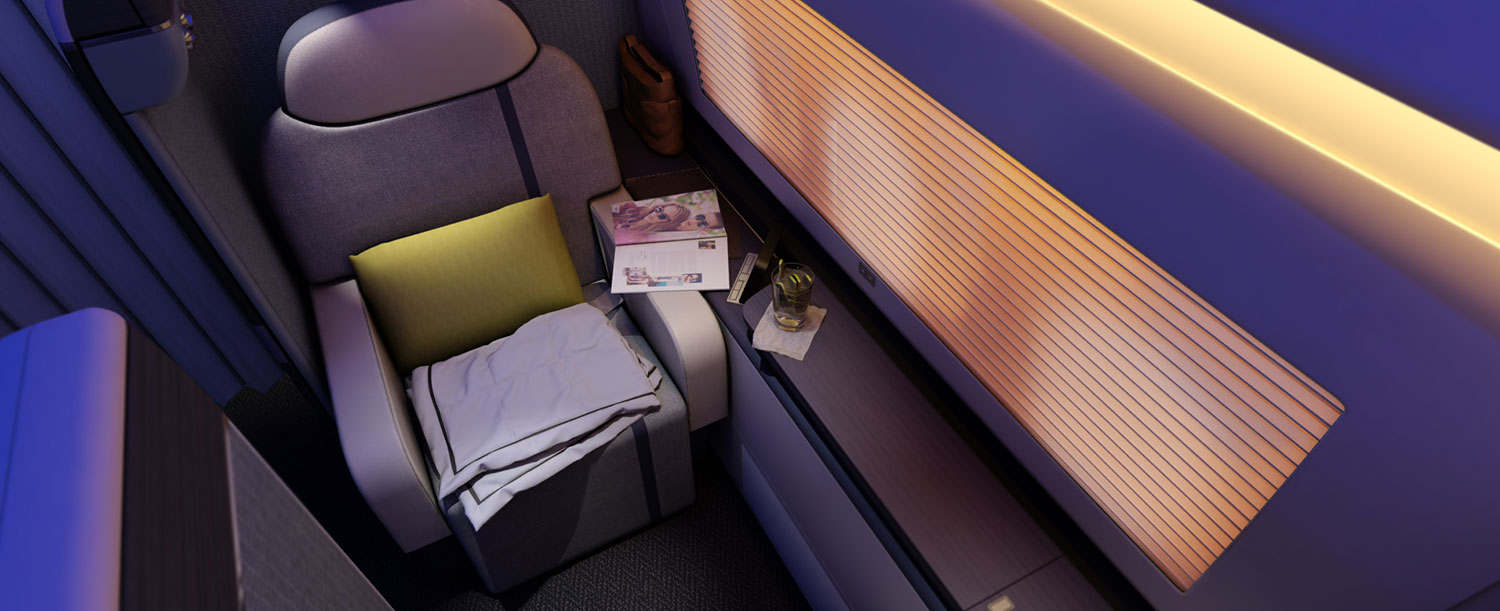

The first-class cabin accommodates the latest “individual cabin” seating systems. In a six-abreast configuration, the first-class cabin provides plenty of room for the industry’s definitive premium seats.

Image of first class seating

Unmatched Capabilities

Family Flexibility

Capacity

Boeing twin-aisle airplanes offer full market coverage between 200 and 500 seats.  Sized between the super-efficient 787 Dreamliner and the new 747-8 Intercontinental, the 777 shares an extraordinary operational commonality with Boeing twin-aisle jetliners. Airplanes can be shifted within a network while maintaining timetables, keeping profit margins strong, and satisfying high passenger expectations.

  • Similar speed and range
  • Flight deck commonality
  • Full market coverage between 200 and 500 seats
  • Operational commonality with large existing fleets
    of 747, 767, 777 aircraft
Chart of 77 capabilities
Capacity and range

The 777 gives airlines the flexibility to serve and create markets that require long range, large capacity, or a combination of the two. In fact, the 777 provides the greatest payload and the longest range of any airplane in the 300- to 400-seat category. The unsurpassed capability of the 777-200LR Worldliner and the 777-300ER give operators strategic growth opportunities to open new markets, carry more passengers and cargo in existing markets, and develop innovative ways to maximize utilization of airplane and crew resources.

Chart of 77 capabilities

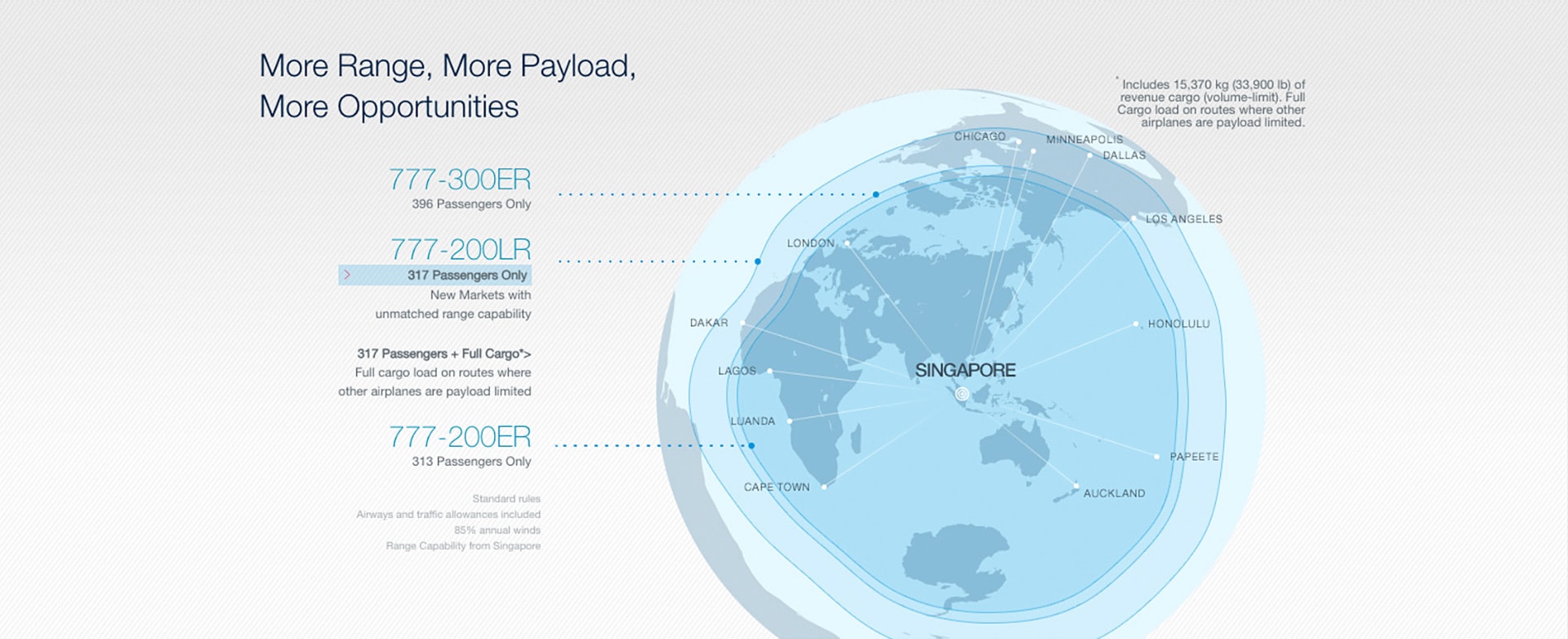

Longer Range

Longer reach and more revenue potential

Airlines have only begun to capitalize on demand for point-to-point service in intercontinental markets. The 777 has both the range to fly these very long routes nonstop and the revenue payload capacity to earn a healthy profit throughout the year.

Carrying lucrative cargo payloads with a full passenger load, the 777 allows airlines to supplement passenger revenues on routes where less-capable airplanes cannot carry cargo when all seats are sold. The ability to carry revenue cargo when the airplane is full is a significant competitive advantage, enabling operators to confidently negotiate cargo contracts for time-definite shipments.

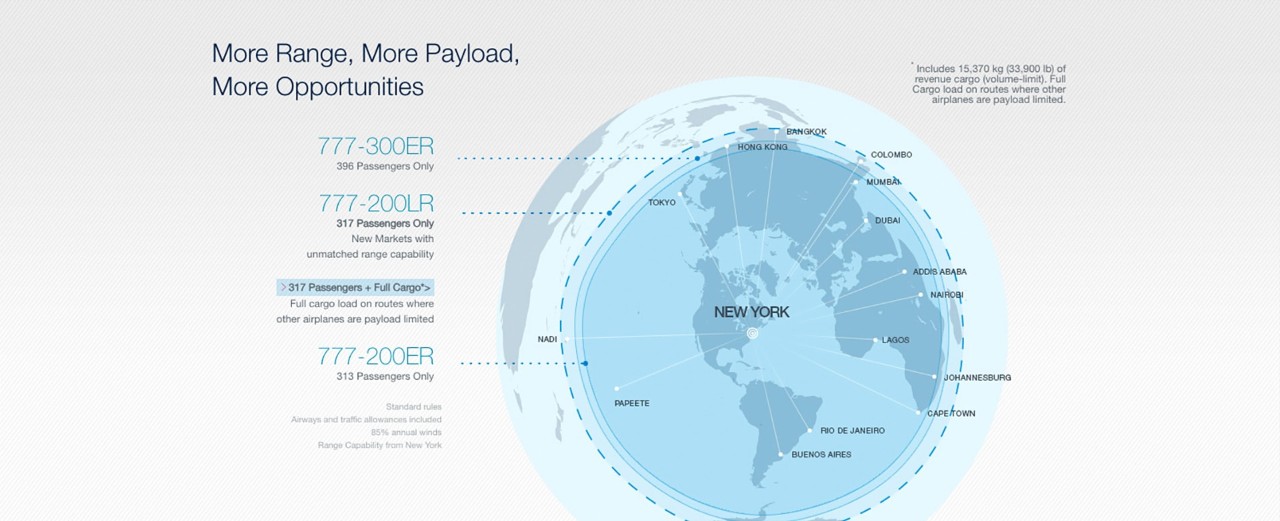

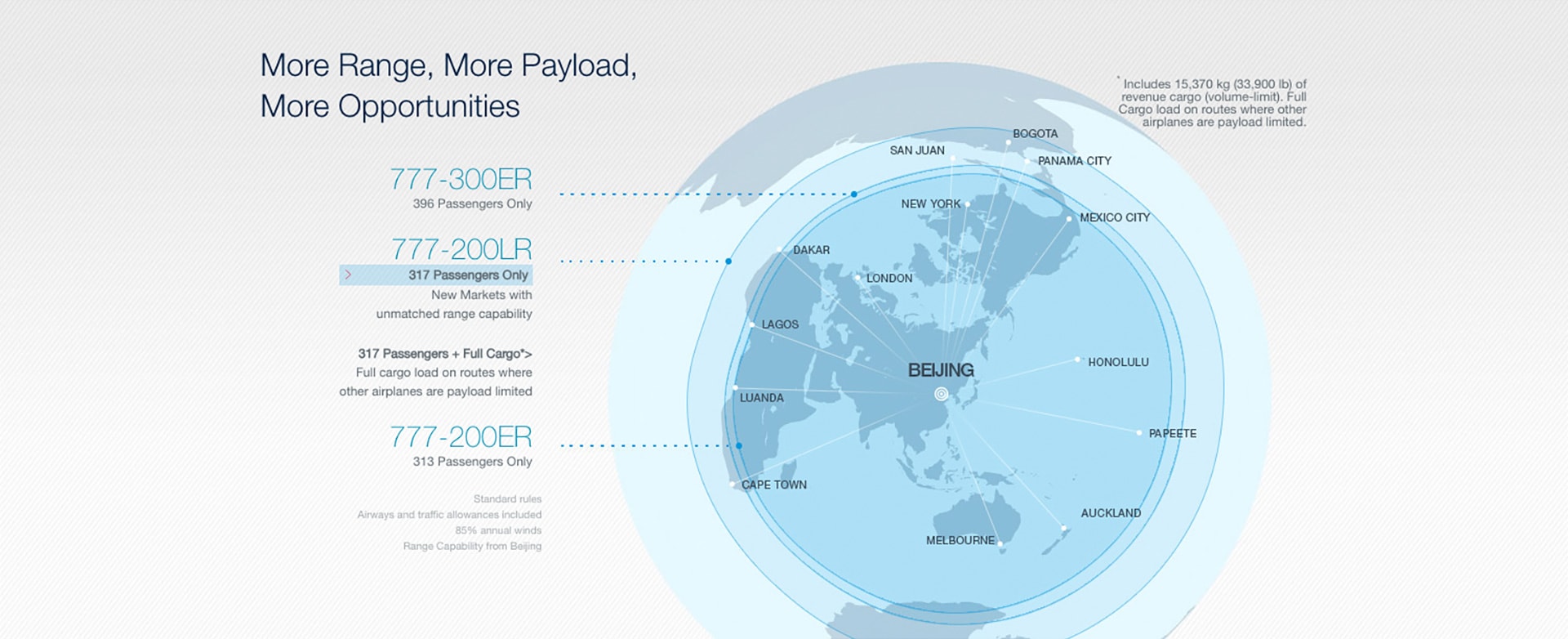

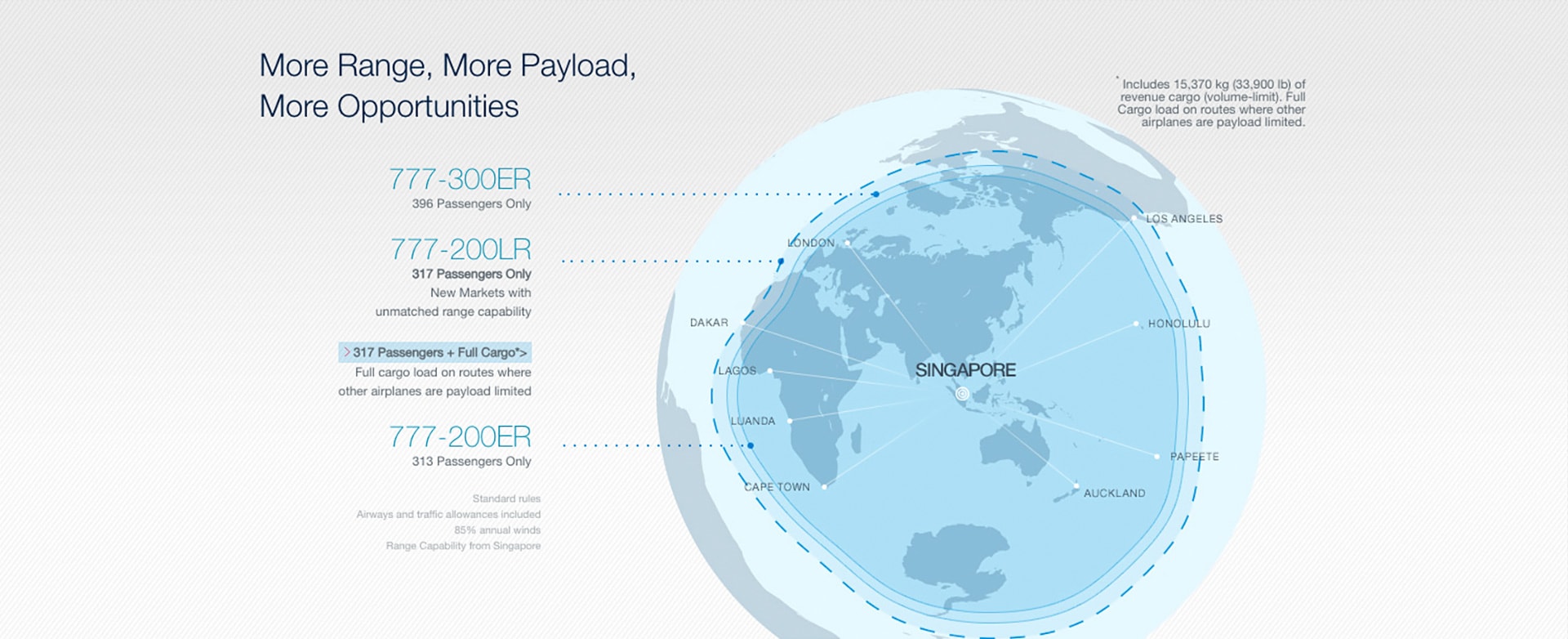

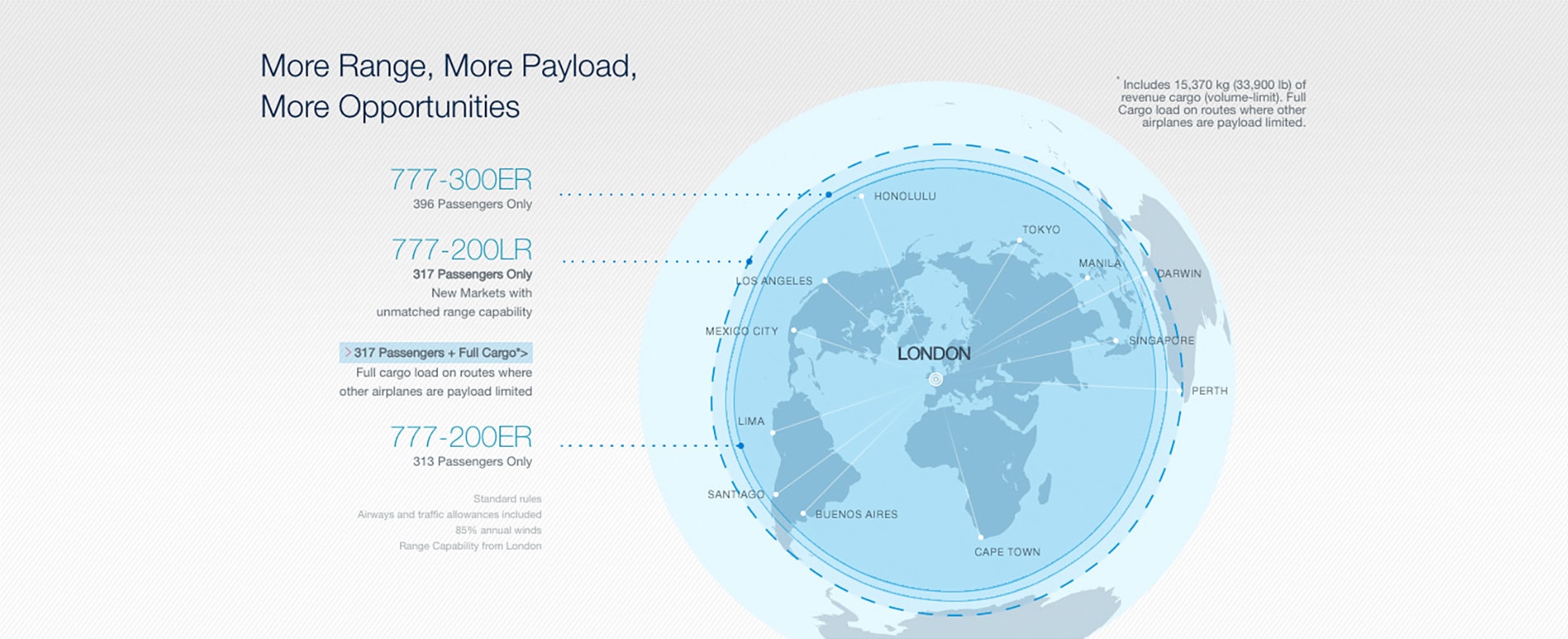

More Revenue Payload

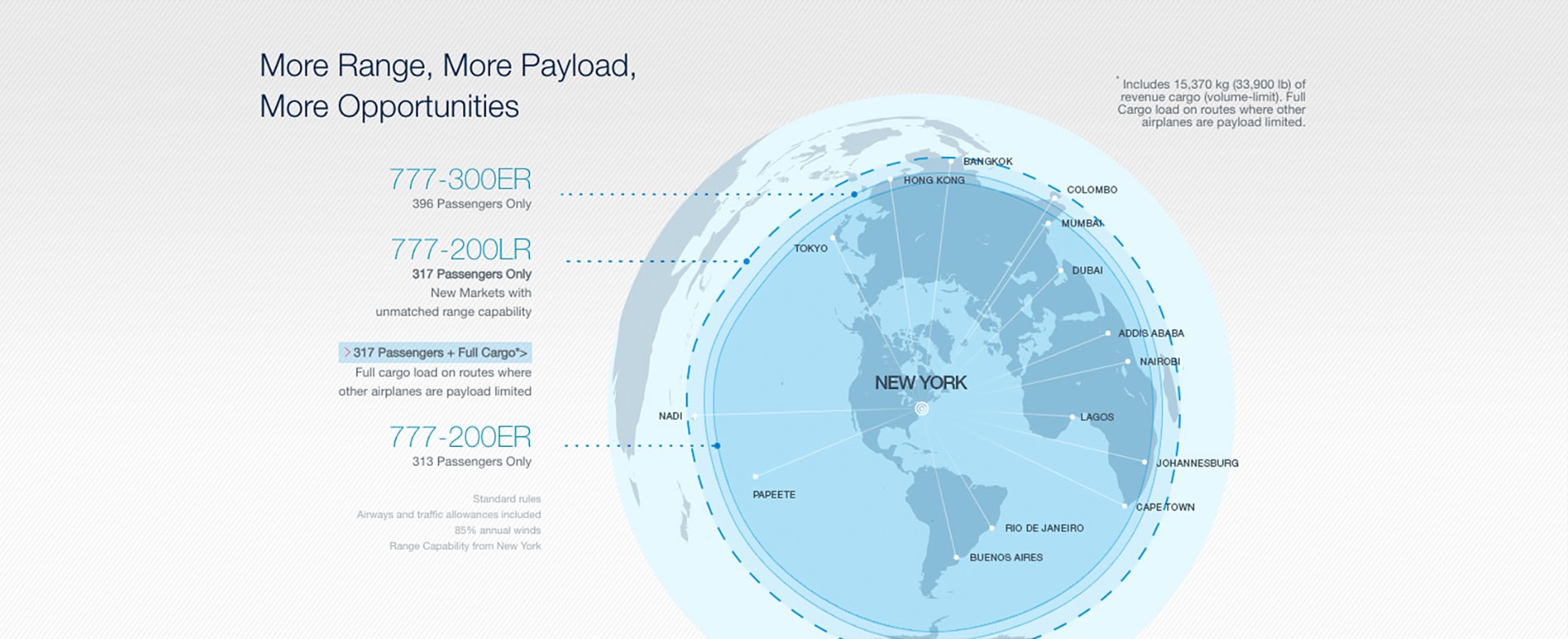

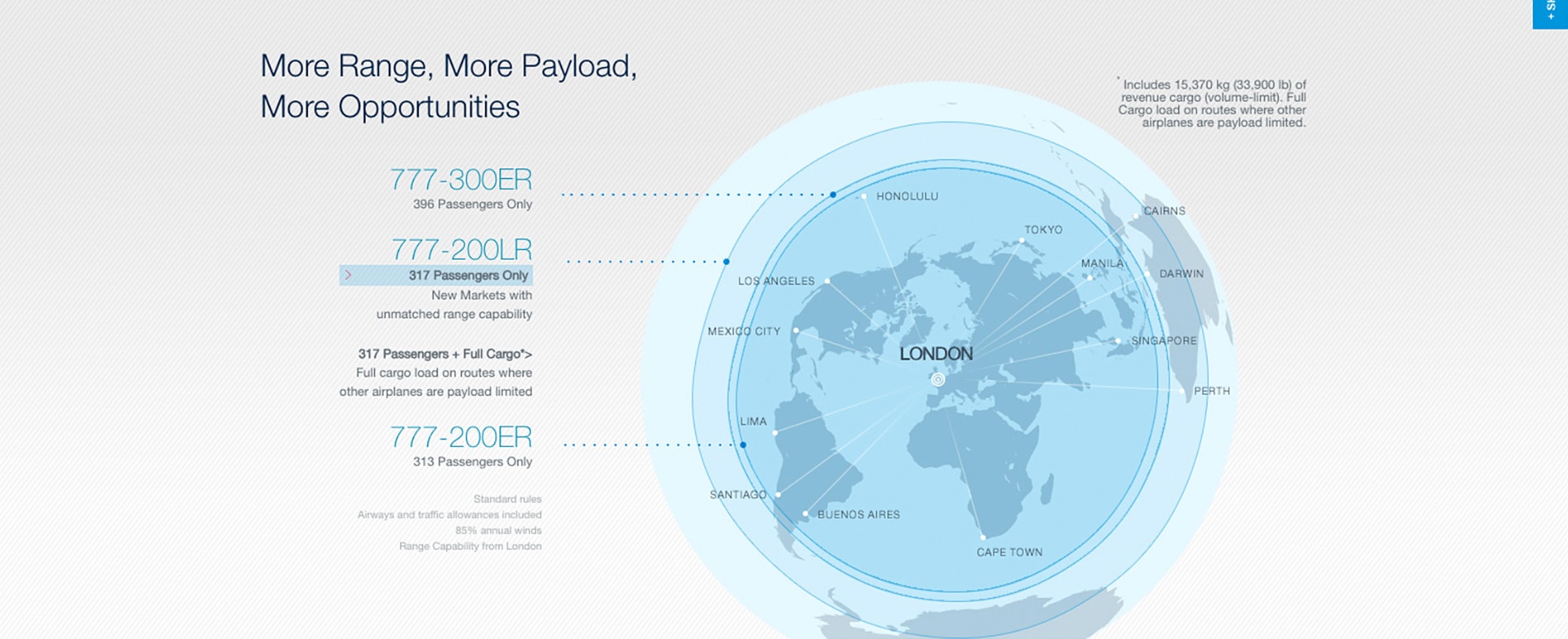

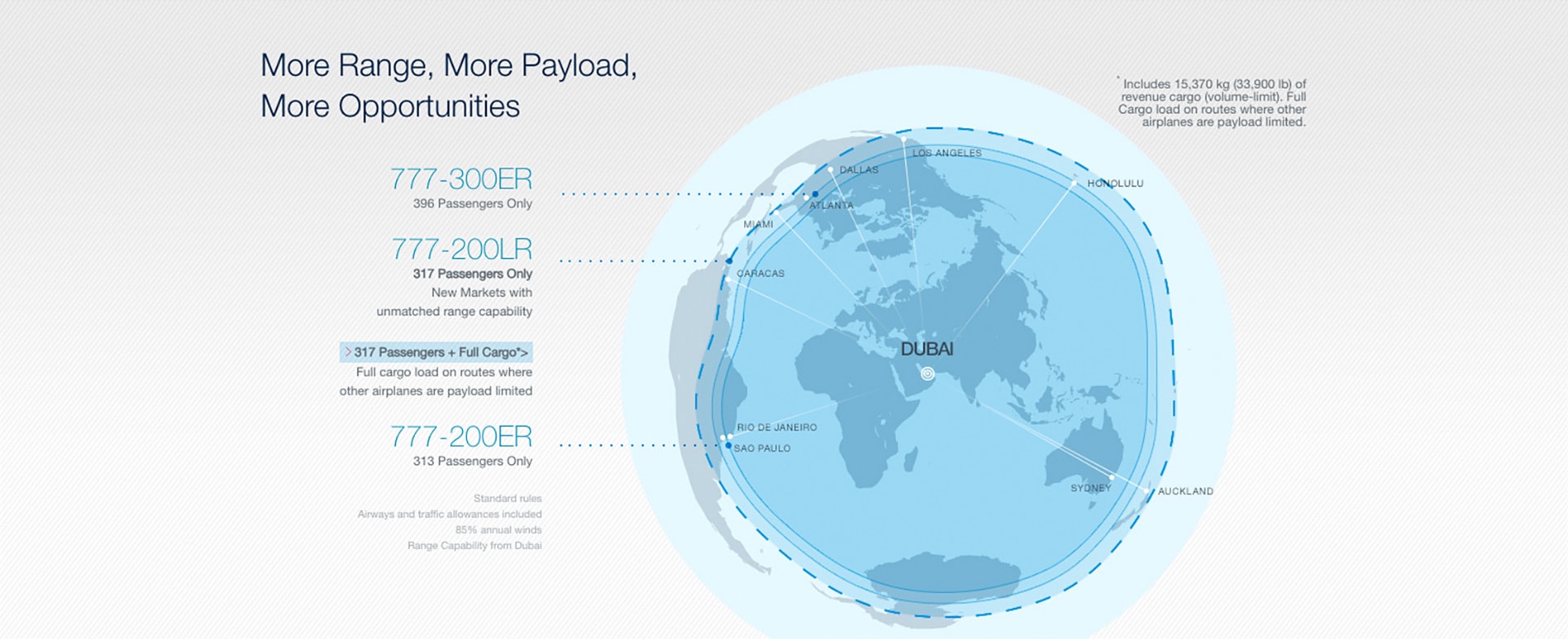

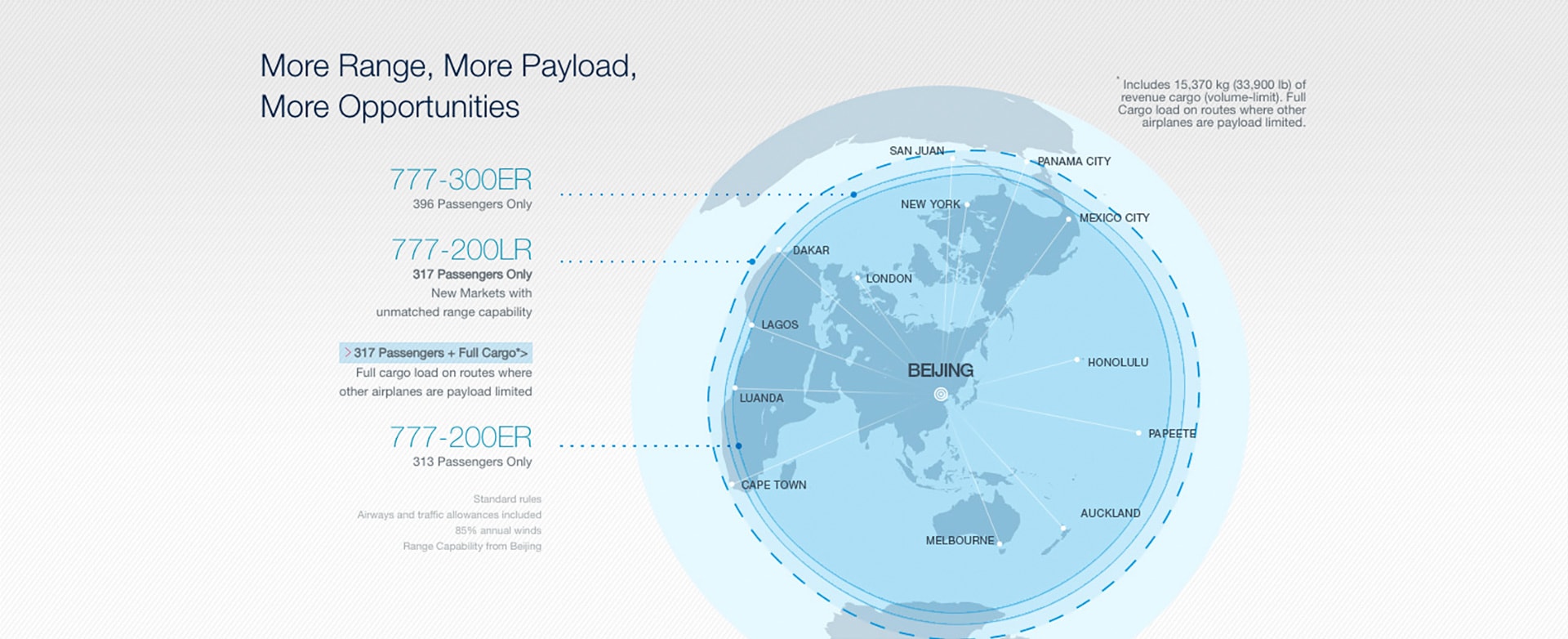

The 777-200LR Worldliner and the 777-300ER (Extended Range) are two long-range airplanes that Boeing developed to offer airlines additional flexibility in serving the nonstop routes that passengers prefer.

The 777-300ER extends the 777 family's span of capabilities, bringing twin-engine efficiency and reliability to the long-range market. The airplane carries 396 passengers up to 7,370 nautical miles (13,650 kilometers).

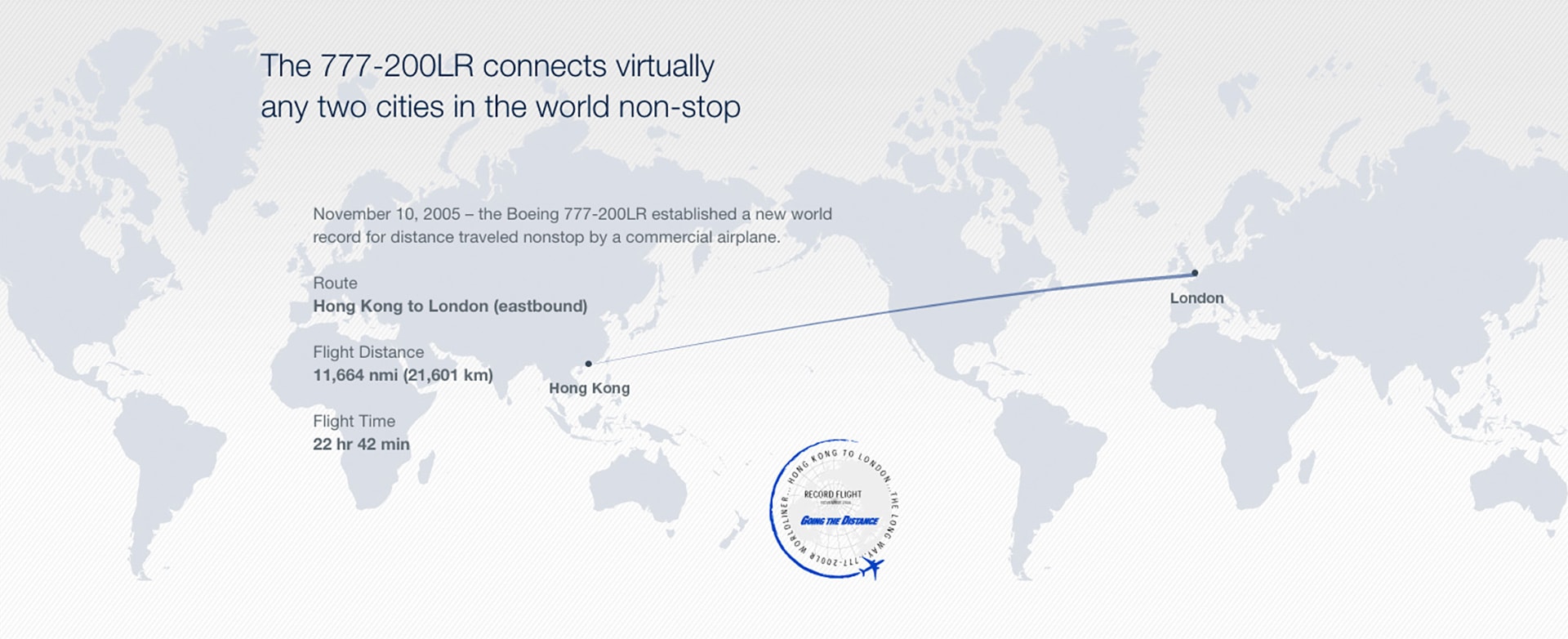

The 777-200LR Worldliner can connect virtually any two cities in the world nonstop. It will carry more passengers and more revenue cargo farther than any other jetliner. It also can carry a full cargo load on routes where other airplanes are payload limited.

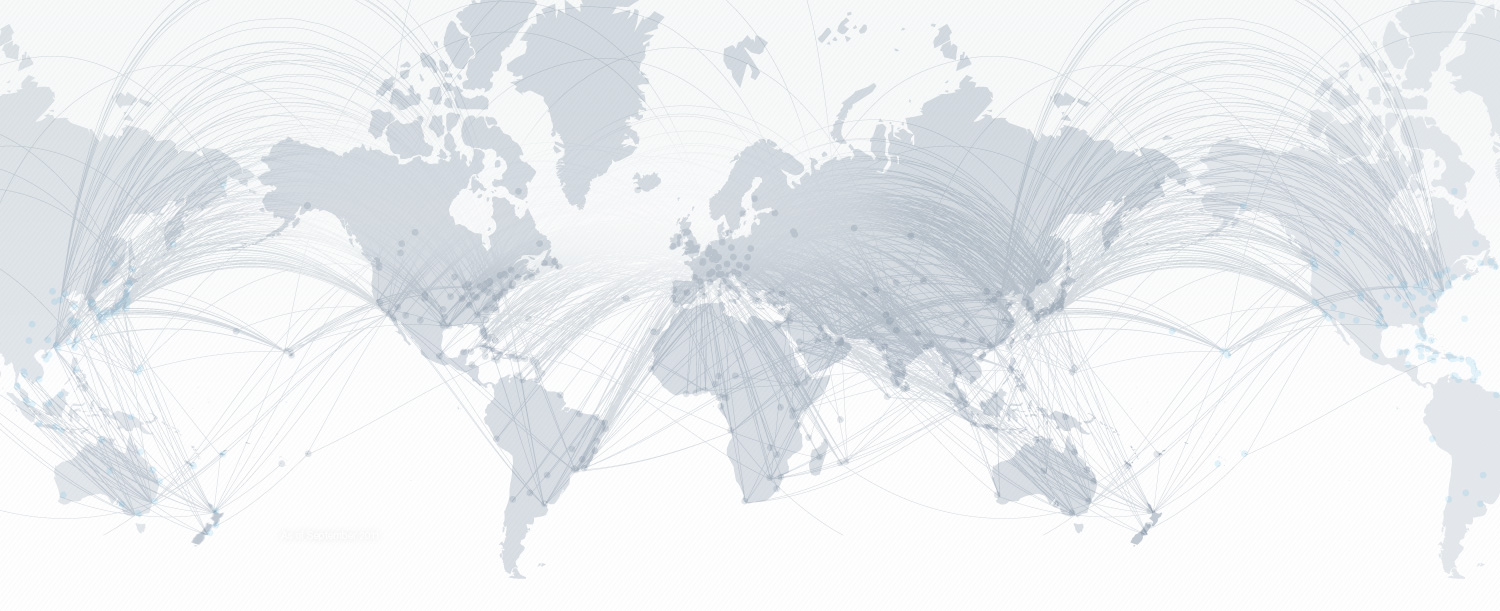

ETOPS Routes

The 777 Flies the Most ETOPS Routes in the World
  • 777s fly over 73,000 flights per month
  • 777s fly twice as many ETOPS flights as all competitor models combined
  • Most 777s are approved for up to 330-min Extended Operations (ETOPS)

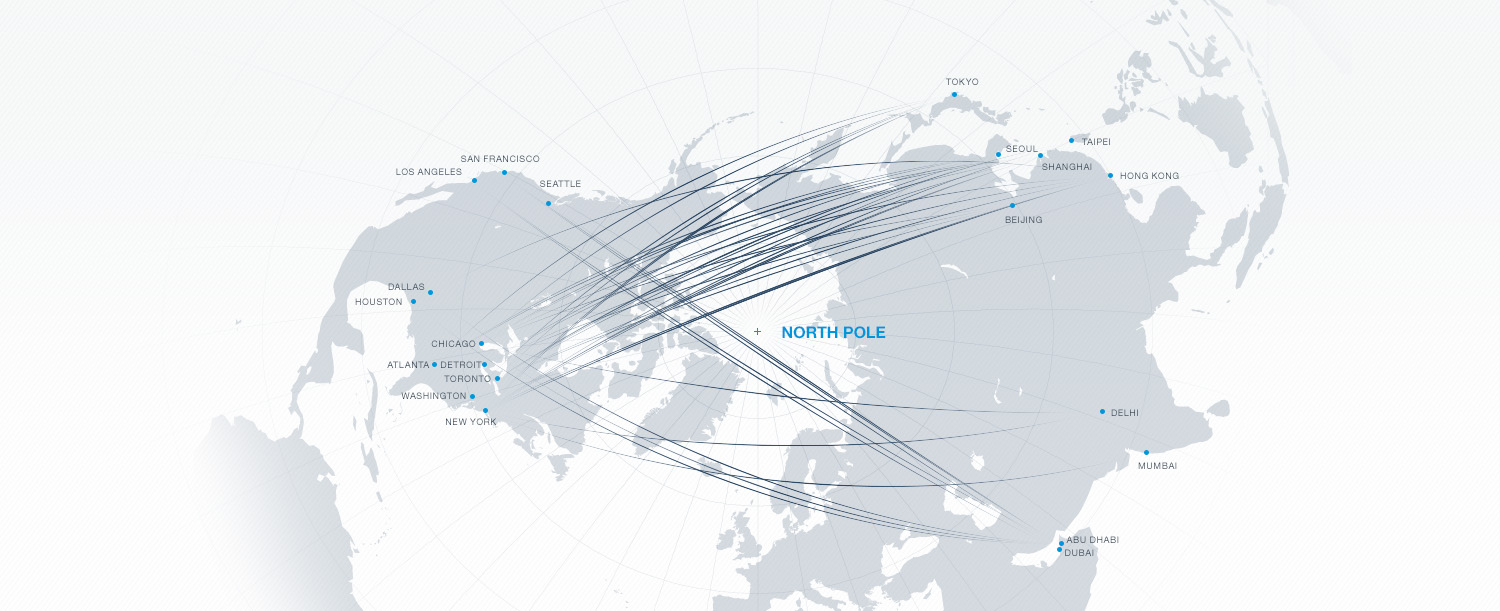

Designed to begin extended operations (ETOPS) at delivery, the 777 quickly became the preferred airplane for busy long-distance routes, especially across the Pacific Ocean. The first twin-engine jetliner to fly the new North Polar routes between North America and Asia, the 777 has completed more than three million ETOPS flights.

Recognizing the success of ETOPS flying, the U.S. Federal Aviation Administration (FAA) updated regulations to allow properly configured and approved twinjets to fly optimal routes between virtually any two cities on Earth. In late 2011, the new- generation 777s with GE engines received type-design approval from the FAA for ETOPS up to 330 minutes.


Profitability

With the range to fly ultralong- distance routes nonstop, the 777 can carry lucrative cargo payloads even when all the seats are full. It offers unrivaled flexibility to optimize frequencies on existing routes, create new nonstop city pairs, and bring a new level of efficiency to a wide range of markets. Sized between the super-efficient 787 Dreamliner and the 747-8 Intercontinental, the 777 shares an extraordinary operational commonality with Boeing twin-aisle jetliners. Airplanes can be shifted within a network while maintaining timetables, keeping profit margins strong, and satisfying high passenger expectations. Airlines also are attracted to the strong fuel economy and low maintenance costs of the 777.

Generates Higher Revenue

  • Preferred by passengers
  • More range
  • More payload
  • More cargo capability
  • More speed
  • Higher reliability
  • More days in the air
  • Flexible configuration

Environmentally Progressive

Cleaner for the Community

The environmentally progressive 777 family meets stringent environmental standards for emissions.

Chart showing 777 emissions metrics

Quieter for the Community

Improving environmental performance is part of the plan for all Boeing airplanes. Since the first 777 entered service, new family members have introduced a series of technology refinements that have kept the 777 family well ahead of environmental requirements.

Every 777 family member easily meets all applicable environmental requirements. In fact, many models already meet future standards intended to cover the next generation of airplanes entering service.

For example, all members of the 777 family beat the current Stage 3/Chapter 3 noise standards by such a substantial margin that Boeing plans to certify the entire family to Stage 4/Chapter 4 standards.

Chart showing 777 noise metrics
Welcome at noise-limited airports

Noise-limited airports often grant the 777 economical access even during restrictive periods of the day and night. The 777 operates with full revenue payloads at airports where older airplanes are payload limited or are restricted to narrow time slots.

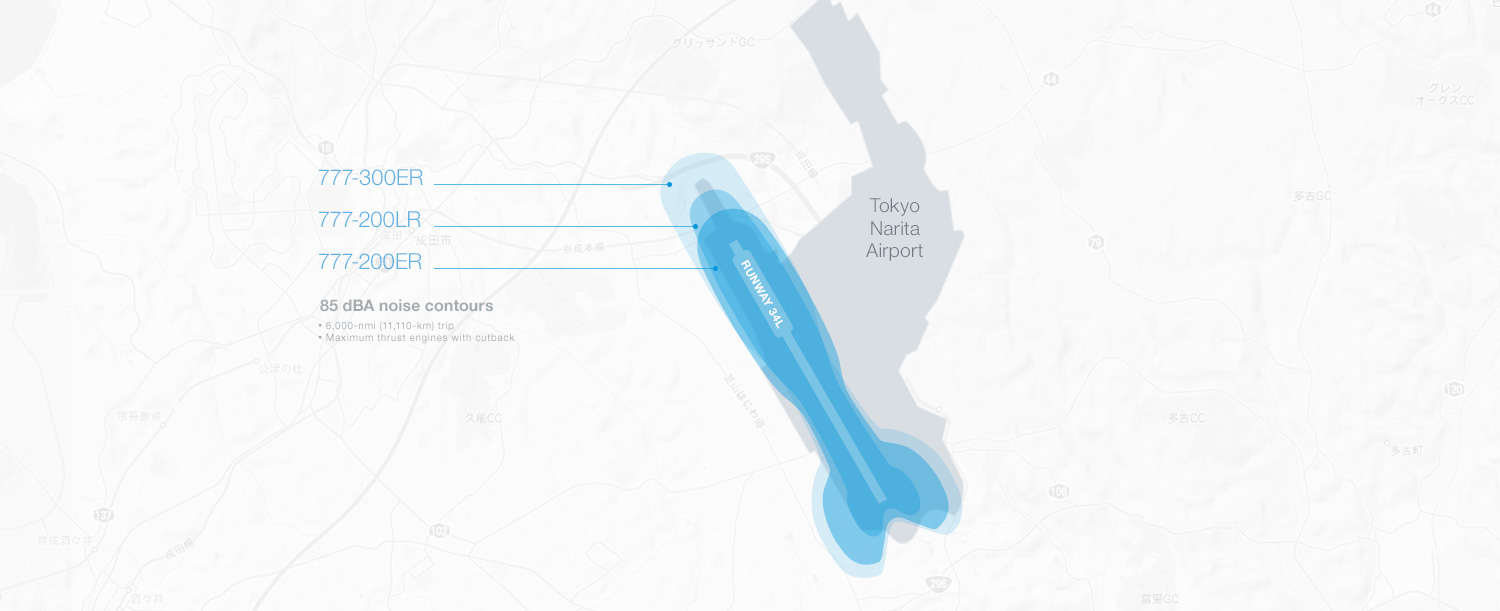

Chart of noise levels at Tokyo airport

Our Plans and Commitments

Boeing Commitment

Building airplanes to be clean and quiet simply makes good economic sense. Airplanes that use fuel more efficiently cost less to operate and give airlines greater access to markets that are subject to increasingly stringent environmental regulations.

Boeing is committed to building airplanes that meet future environmental standards. Working with engine manufacturers and fuel  producers, Boeing will promote development of more efficient propulsion systems and cleaner fuels. In cooperation with air traffic authorities, Boeing will pursue more efficient operating procedures to reduce airplane fuel consumption and carbon dioxide emission-on the ground and in the air.


100%

ISO 4001



75%

of research



25%

better



15%

improvement


ISO 14001 certification planned for all manufacturing sites.

Our environmental commitment spans the entire life cycle of our jetliners—from the offices where airplanes are designed, through the manufacturing process, to the operation and maintenance of the airplane in commercial service, and ultimately to the recycling of resources from retired aircraft. As a recognized Lean+ innovator, Boeing Commercial Airplanes has or will achieve certification for all manufacturing sites under stringent ISO environmental management standards.

Characteristics

777-300ER
Passengers 396
Range  13,650 km / 7,370 nmi
Length 73.9 m (209 ft 1 in)
Wingspan 64.8 m (242 ft 4 in)
Height 18.5 m (60 ft 8 in)

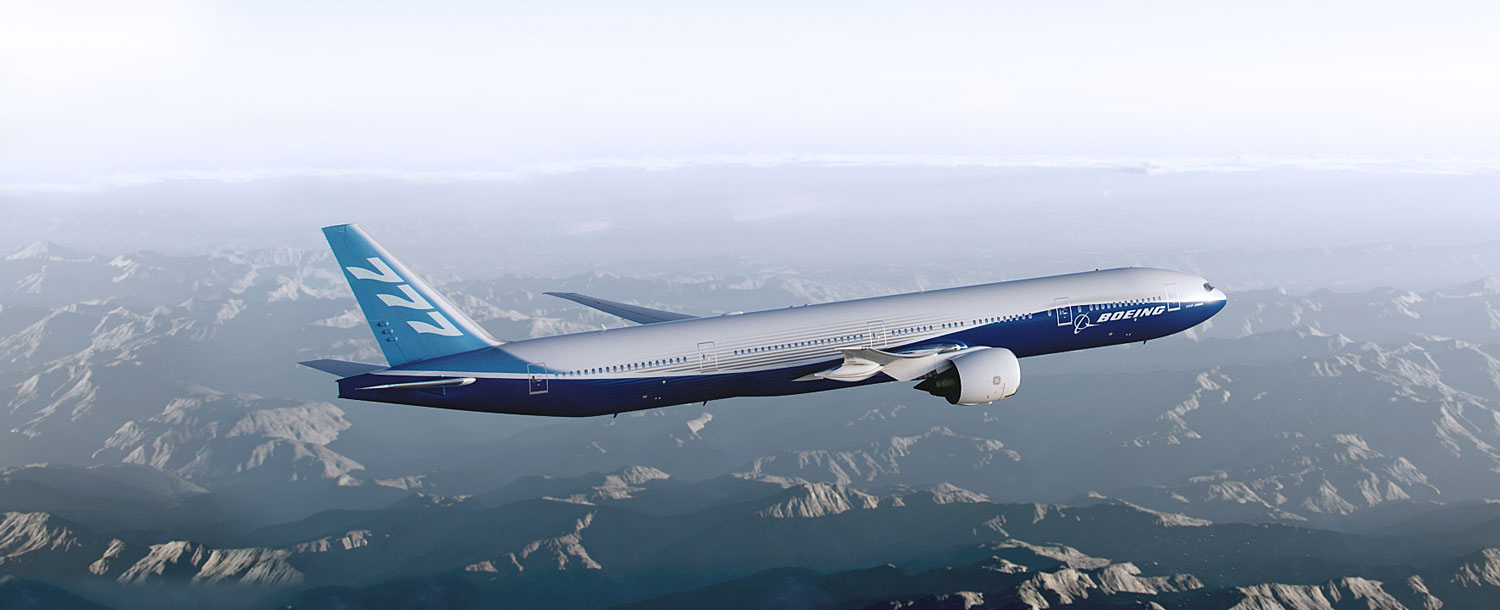

777-300ER rendering
Cargo Arrangement
777-300ER Cargo layout
Cruise Speed Mach 0.84
Total Cargo Volume  201.6 m33/ 7,120 ft3
Maximum Takeoff Weight 351,530 kg  /  775,000 lb
* Includes bulk cargo. Assumes 0.15 m3 (5.2 ft3) per passenger at 100% load factor

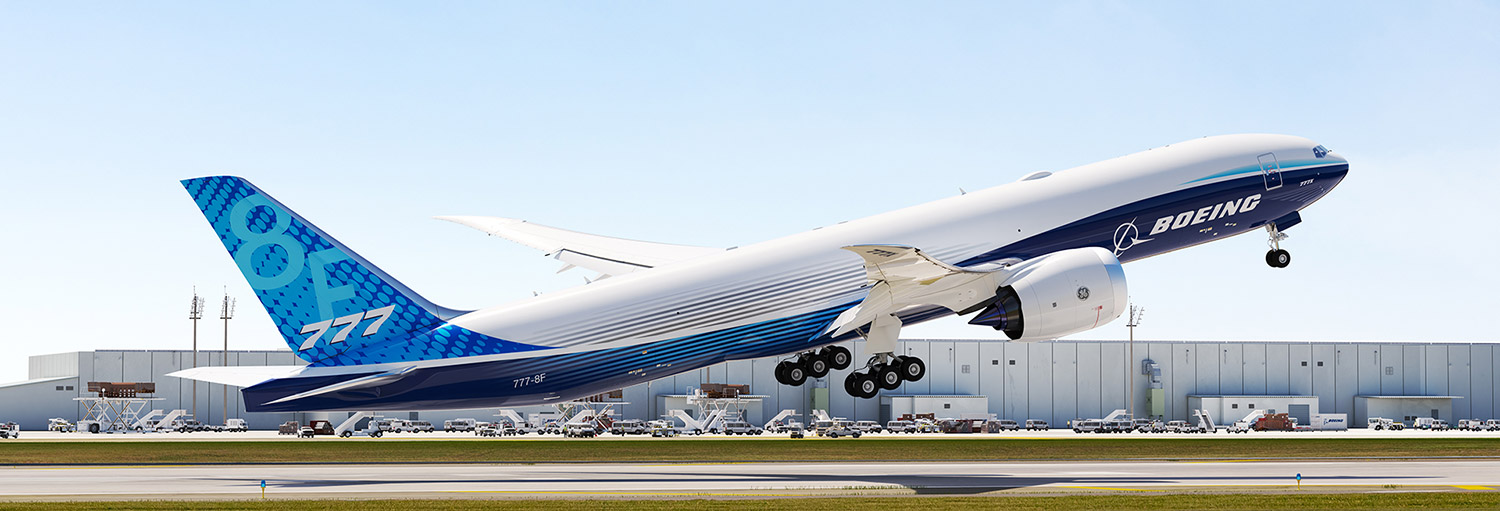

777-8F taking flight on a clear day

Freighters
